Welcome to the JeepSpecs.com in-depth table on WK Generation Jeep Grand Cherokee audio system wiring. Did we miss anything? Please get in touch with us and tell us about it!
 |

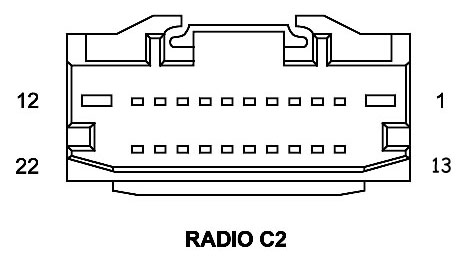

| Cavity | Wire color | Function |
| 1 | Red / Orange | FUSED B(+) |
| 2 | – – | – – |
| 3 | – – | – – |
| 4 | Dark Green / Orange | LEFT AUDIO OUTPUT (UConnect hands-free) |
| 5 | White / Orange | CAN B BUS (+) |
| 6 | White | CAN B BUS (-) |
| 7 | Gray | RIGHT FRONT SPEAKER (+) |
| 8 | Gray / Brown | RIGHT FRONT SPEAKER (-) |
| 9 | Dark Green / Brown | LEFT FRONT SPEAKER (-) |
| 10 | Dark Green | LEFT FRONT SPEAKER (+) |
| 11 | Black | GROUND |
| 12 | Red / Orange | FUSED B(+) |
| 13 | – – | – – |
| 14 | – – | – – |
| 15 | RADIO MUTE | |
| 16 | Dark Green / Yellow | RIGHT AUDIO OUTPUT (UConnect hands-free) |
| 17 | Dark Green | COMMON AUDIO OUTPUT (UConnect hands-free) |
| 18 | Dark Green / Dark Blue | LEFT REAR AUDIO (+) |
| 19 | Dark Green / Violet | LEFT REAR AUDIO (-) |
| 20 | Gray / Tan | RIGHT REAR AUDIO (-) |
| 21 | Gray / Dark Blue | RIGHT REAR AUDIO (+) |
| 22 | Black | GROUND |
 |

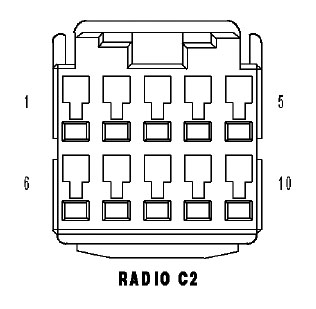

| Cavity | Wire color | Function |
| 1 | Dark Green / Yellow | AUDIO SIGNAL RIGHT (+) (Satellite radio) |
| 2 | Dark Green | AUDIO SIGNAL COMMON (Satellite radio) |
| 3 | – – | – – |
| 4 | Dark Green / Light Blue | RIGHT AUDIO AUX (DVD) |
| 5 | Gray / Orange | AUDIO OUT GROUND (DVD) |
| 6 | Dark Green / Orange (except satellite radio) |
AUDIO SIGNAL LEFT (+) |
| 6 | Dark Green / Light Blue | AUDIO SIGNAL LEFT (+) (Satellite radio) |
| 7 | Gray / Dark Green | AUX AUDIO RETURN COMMON (DVD) |
| 8 | Gray / Dark Green | LEFT AUDIO AUX (DVD) |
| 9 | Gray / Light Blue) | LEFT AUDIO AUX (DVD) |
| 10 | Gray / Dark Blue | RIGHT AUDIO AUX (DVD) |
 |
| Cavity | Wire color | Function |
| 1 | Dark Green / Orange | Camera Return |
| 2 | Dark Green / Brown | Camera Signal |
| 3 | Dark Green / White | Camera Shield |
 |
| Cavity | Wire color | Function |
| 1 | Dark Green/ Orange | LEFT AUDIO OUTPUT |
| 1 | Light Blue / Dark Green | MICROPHONE 2 IN (+)) |
| 2 | Dark Green / Yellow | RIGHT AUDIO OUTPUT |
| 2 | Dark Green / Dark Blue | MICROPHONE 1 IN (+)) |
| 3 | – – | – – |
| 4 | Dark Green / Yellow | MICROPHONE FEED |
| 5 | – – | – – |
| 6 | Dark Green | COMMON AUDIO OUTPUT |
| 7 | Dark Green / White | MICROPHONE IN (-) |
| 8 | Orange / Gray | SENSOR GROUND |
| 9 | – – | – – |
| 10 | – – | – – |
 |
| Cavity | Wire color | Function |
| 1 | Red / Orange | FUSED (B+) |
| 2 | White | CAN B BUS (-) |
| 3 | – – | – – |
| 4 | – – | – – |
| 5 | – – | – – |
| 6 | – – | – – |
| 7 | Light Blue / Gray | AMPLIFIED ANTENNA FEED |
| 8 | Dark Green / Dark Blue | LEFT REAR AUDIO (+) |
| 8 | Gray / Light Green | AMPLIFIED LEFT REAR DOOR SPEAKER (+) |
| 9 | Dark Green / Orange | LEFT REAR AUDIO (-) |
| 9 | Gray / Dark Green | AMPLIFIED LEFT REAR DOOR SPEAKER (-) |
| 10 | Gray / Dark Blue | RIGHT REAR AUDIO (+) |
| 10 | Dark Green / Light Green | AMPLIFIED RIGHT REAR DOOR SPEAKER (+) |
| 11 | Gray / Orange | RIGHT REAR AUDIO (-) |
| 11 | Dark Green / Gray | AMPLIFIED RIGHT REAR DOOR SPEAKER (-) |
| 12 | Black | GROUND |
| 13 | White / Orange | CAN B BUS (+) |
| 14 | – – | – – |
| 15 | – – | – – |
| 16 | – – | – – |
| 17 | – – | – – |
| 18 | – – | – – |
| 19 | Dark Green / Violet | AMPLIFIED RIGHT REAR DOOR SPEAKER (+) |
| 20 | Dark Green / Yellow | AMPLIFIED FRONT DOOR SPEAKER (-) |
| 21 | Gray / Violet | AMPLIFIED LEFT FRONT DOOR SPEAKER (+) |
| 22 | Gray / Yellow | AMPLIFIED LEFT FRONT DOOR SPEAKER (-) |
 |
| Cavity | Wire color | Function |
| 1 | Gray / Light Blue | AUDIO RETURN 3 |
| 2 | – – | – – |
| 3 | Dark Green / Brown | CAMERA SIGNAL |
| 4 | Dark Green / Orange | CAMERA RETURN |
| 5 | Dark Green / White | CAMERA SHIELD |
| 6 | Gray / Brown | VIDEO SIGNAL 1 |
| 7 | Gray / White | VIDEO COMMON 1 |
| 8 | Dark Green / Tan | VIDEO SHIELD 1 |
| 9 | Gray / Light Blue | VIDEO SHIELD 2 |
| 10 | Gray / Yellow | VIDEO COMMON 2 |
| 11 | Dark Green / Brown | VIDEO SHIELD 2 |
| 12 | Gray / Orange | AUDIO RETURN 2 |
| 13 | Dark Green / Violet | AUDIO LEFT 3 |
| 14 | Dark Green / Yellow | AUDIO RIGHT 3 |
| 15 | – – | – – |
| 16 | – – | – – |
| 17 | – – | – – |
| 18 | Dark Green / Tan | AUDIO LEFT 1 |
| 19 | Gray / Violet | AUDIO RETURN 1 |
| 20 | Dark Green / White | AUDIO RIGHT 1 |
| 21 | Dark Green / Light Blue | AUDIO LEFT 2 |
| 22 | Dark Green / Dark Blue | AUDIO RIGHT 2 |
 |

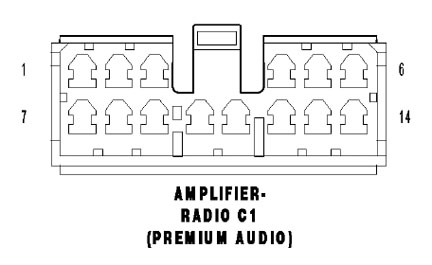

| Cavity | Wire color | Function |
| 1 | Red / Orange | AMPLIFIED LEFT FRONT DOOR SPEAKER (+) |
| 2 | Dark Green / Violet | AMPLIFIED RIGHT FRONT DOOR SPEAKER (+) |
| 3 | Gray / Light Green | AMPLIFIED LEFT REAR DOOR SPEAKER (+) |
| 4 | Dark Green / Light Green | AMPLIFIED RIGHT REAR DOOR SPEAKER (+) |
| 5 | Gray / Brown | AMPLIFIED SUBWOOFER (+) (SRT8 Kicker amp only) |
| 6 | – – | – – |
| 7 | Gray / Yellow | AMPLIFIED LEFT FRONT DOOR SPEAKER (-) |
| 8 | Dark Green / Yellow | AMPLIFIED RIGHT FRONT DOOR SPEAKER (-) |
| 9 | Gray / Dark Green | AMPLIFIED LEFT REAR DOOR SPEAKER (-) |
| 10 | – – | – – |
| 11 | – – | – – |
| 12 | Light Green / Gray | AMPLIFIED RIGHT REAR DOOR SPEAKER (-) |
| 13 | Dark Green / Brown | AMPLIFIED SUBWOOFER (-) (SRT8 Kicker amp only) |
| 14 | – – | – – |
 |

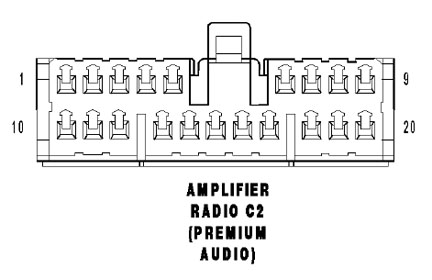

| Cavity | Wire color | Function |
| 1 | Gray / Orange | AMPLIFIED LEFT I/P SPEAKER (+) |
| 2 | Gray / Dark Green | AMPLIFIED RIGHT I/P SPEAKER (+) |
| 3 | – – | Center channel (+) (not used in the WK) |
| 4 | Yellow / Red | FUSED B (+) |
| 5 | – – | – – |
| 6 | White / Orange | CAN B BUS (+) |
| 7 | Dark Green / Dark Blue | LEFT REAR AUDIO (+) |
| 8 | Gray / Dark Blue | RIGHT REAR AUDIO (+) |
| 9 | Black / Light Green | GROUND |
| 10 | Gray / Yellow | AMPLIFIED LEFT I/P SPEAKER (-) |
| 11 | Gray / Light Green | AMPLIFIED RIGHT I/P SPEAKER (-) |
| 12 | – – | Center channel (-) (not used in the WK) |
| 13 | Yellow / Red | FUSED B (+) |
| 14 | – – | – – |
| 15 | – – | – – |
| 16 | – – | – – |
| 17 | White | CAN B BUS (-) |
| 18 | Dark Green / Violet | LEFT REAR AUDIO (-) |
| 19 | Gray / Tan | RIGHT REAR AUDIO (-) |
| 20 | Black / Light Green | GROUND |
|
|
|
| Cavity | Wire color | Function |
| Instrument panel speakers – Left | ||
| 1 | Gray / Yellow (premium audio) |
AMPLIFIED LEFT I/P SPEAKER (-) |
| 2 | Gray / Orange (premium audio) |
AMPLIFIED LEFT I/P SPEAKER (+) |
| 1 | Dark Green / Brown (except premium audio) |
LEFT I/P SPEAKER (-) |
| 2 | Dark Green (except premium audio) |
LEFT I/P SPEAKER (+) |
| Instrument panel speakers – Right | ||
| 1 | Gray / Light Green (premium audio) |
AMPLIFIED RIGHT I/P SPEAKER (-) |
| 2 | Gray / Dark Green (premium audio) |
AMPLIFIED RIGHT I/P SPEAKER (+) |
| 1 | Gray / Brown (except premium audio) |
RIGHT I/P SPEAKER (-) |
| 2 | Gray (except premium audio) |
RIGHT I/P SPEAKER (+) |
| Front door speakers – Left | ||
| 1 | Gray / Yellow | AMPLIFIED LEFT FRONT DOOR SPEAKER (-) |
| 2 | – – | – – |
| 3 | Gray / Violet | AMPLIFIED LEFT FRONT DOOR SPEAKER (+) |
| Front door speakers – Right | ||
| 1 | Dark Green / Yellow | AMPLIFIED RIGHT FRONT DOOR SPEAKER (-) |
| 2 | – – | – – |
| 3 | Dark Green / Violet | AMPLIFIED RIGHT FRONT DOOR SPEAKER (+) |
| Rear door speakers – Left | ||
| 1 | Gray / Dark Green | AMPLIFIED LEFT REAR DOOR SPEAKER (-) |
| 2 | – – | – – |
| 3 | Gray / Light Green | AMPLIFIED LEFT REAR DOOR SPEAKER (+) |
| Rear door speakers – Right | ||
| 1 | Light Green / Gray | AMPLIFIED RIGHT REAR DOOR SPEAKER (-) |
| 2 | – – | – – |
| 3 | Dark Green / Light Green | AMPLIFIED RIGHT REAR DOOR SPEAKER (+) |

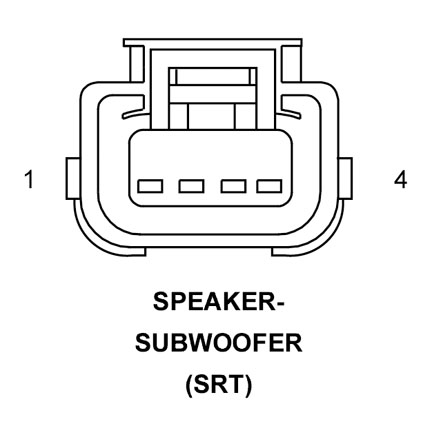

| Subwoofer (SRT8) | ||
| 1 | Red | FUSED (B+) |
| 2 | Gray / Brown | AMPLIFIED SUBWOOFER (+) |
| 2 | Dark Green / Brown | AMPLIFIED SUBWOOFER (-) |
| 2 | Black / Light Green | GROUND (-) |
