Many owners of the third-generation Jeep Wrangler appreciate its design and performance, but like any vehicle, it has a few common issues that can appear over time. These problems often relate to heating performance, emissions components, and engine seals. Knowing what to look for can help drivers maintain their vehicles and prevent costly repairs down the road.
This article explains several of the most frequent concerns that Jeep Wrangler owners may face and offers practical steps to address them. Each issue can be managed with proper care and maintenance, keeping the vehicle reliable and safe for daily use.
Key Takeaways
- Regular maintenance helps prevent heating and emission system issues
- Oil and sensor problems can affect engine performance if ignored
- Checking seals and gaskets can reduce leaks and interior moisture
Heater Core Issues
Signs of Heater Core Trouble
Drivers may notice weak or no heat from the vents when the heater core starts to clog. The problem comes from buildup inside the small tubes that carry coolant. When this happens, warm air can’t pass through the system properly.
Common indicators include:
- Heat that feels cooler than normal
- Foggy windows from moisture inside the cabin
- A sweet smell that hints at coolant issues
Caring for the Heater Core
Keeping the coolant clean helps prevent blockage. Technicians recommend draining and refilling the cooling system on a regular schedule with fresh coolant.
Simple maintenance steps:
- Check coolant levels often.
- Flush the cooling system when replacing coolant.
- Run clean water through the heater core hoses during service.
| Task | Frequency | Purpose |
|---|---|---|
| Coolant change | As recommended by manufacturer | Prevent buildup |
| Hose flush | During coolant service | Clear debris |
| Leak check | Twice a year | Catch early problems |
Repairing or Replacing the Heater Core
If flushing doesn’t restore heat, the heater core may need replacement. This job requires removing much of the dashboard, which makes it time-consuming.
Repair options:
- Flush the core with low water pressure to remove blockages.
- Replace the heater core if flushing fails or leaks are found.
Proper care and timely service help reduce the chance of major repairs later.
EVAP System Problems
Typical EVAP Error Codes and Their Sources
When the check engine light turns on with an EVAP-related code, the issue often comes from a small leak in the system. The most common cause is a loose or damaged gas cap. A faulty seal or worn ratchet mechanism can prevent the system from holding pressure.
Common EVAP codes and causes
| Code | Likely Cause | Recommended Action |
|---|---|---|
| P0440 | General EVAP malfunction | Inspect gas cap and hoses |
| P0455 | Large leak detected | Replace gas cap or check vent lines |
| P0456 | Small leak detected | Test for cracks or valve leaks |

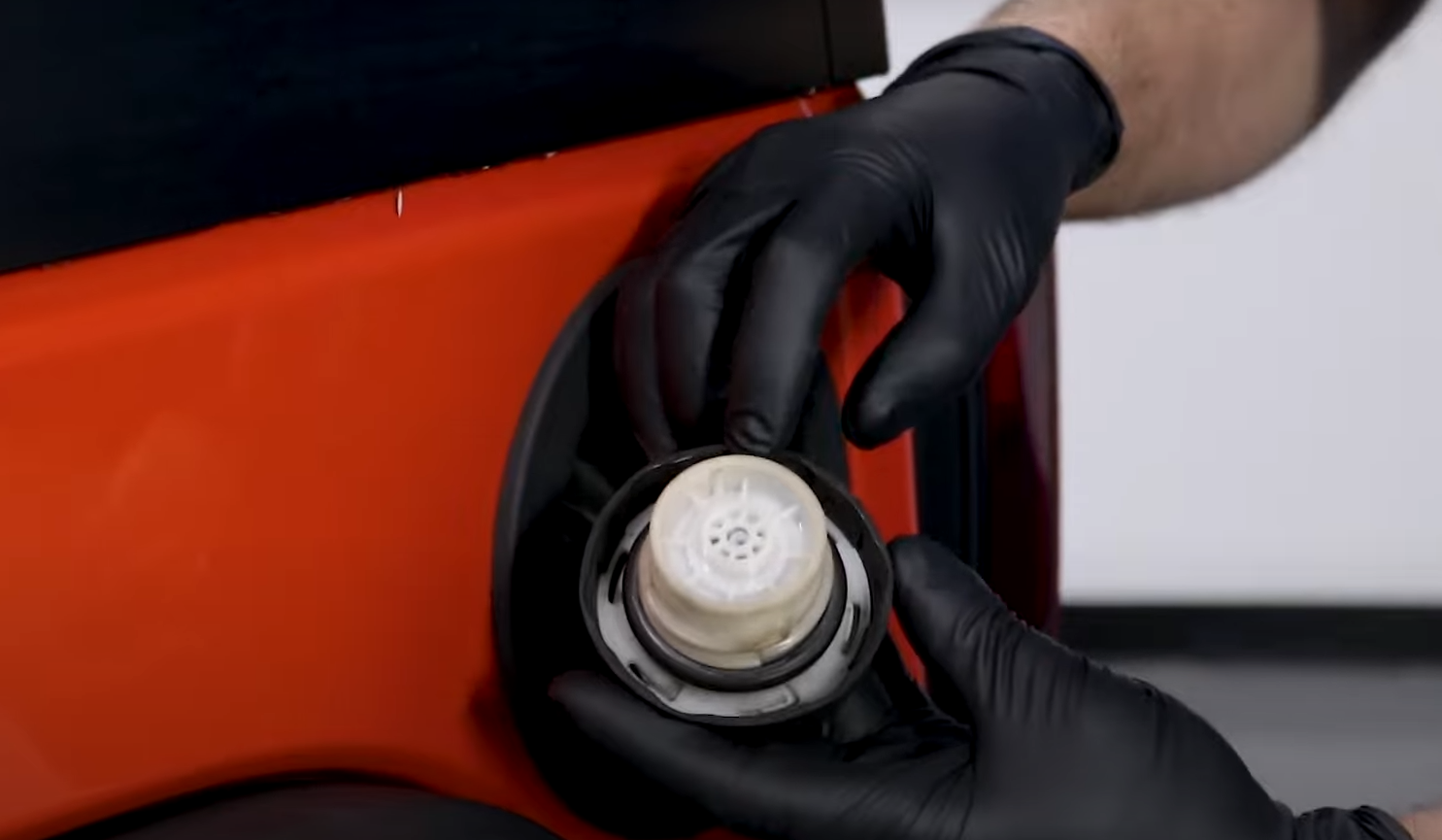

Checking and Replacing the Fuel Cap
A quick inspection of the gas cap can often solve an EVAP issue. The seal should be soft and free of cracks. If the cap feels loose or the rubber looks dry, replacement is the best option.
Steps to check the gas cap:
- Remove the cap and inspect the seal.
- Clean the filler neck to remove dirt.
- Tighten the cap until it clicks several times.
If the light returns after replacement, further testing of the EVAP system may be needed.
Problems With the Leak Detection Pump
The leak detection pump, sometimes called the vent valve, is another frequent trouble spot. It’s mounted on the EVAP canister near the rear of the vehicle. When this valve fails, it can cause false leak codes or prevent the system from sealing properly.
A faulty pump should be replaced as a unit. After installation, clearing the code and running a system test usually confirms the repair.

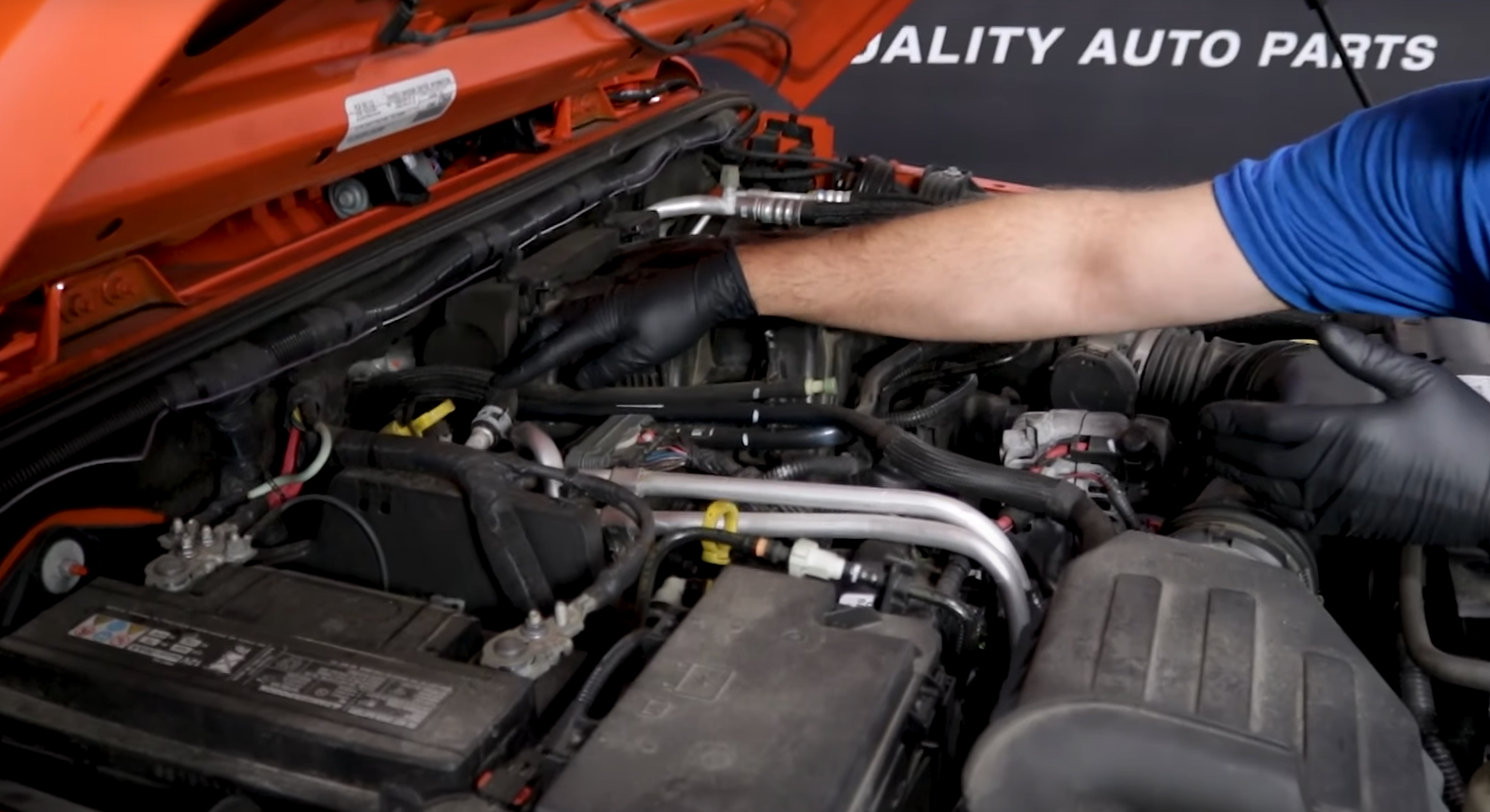

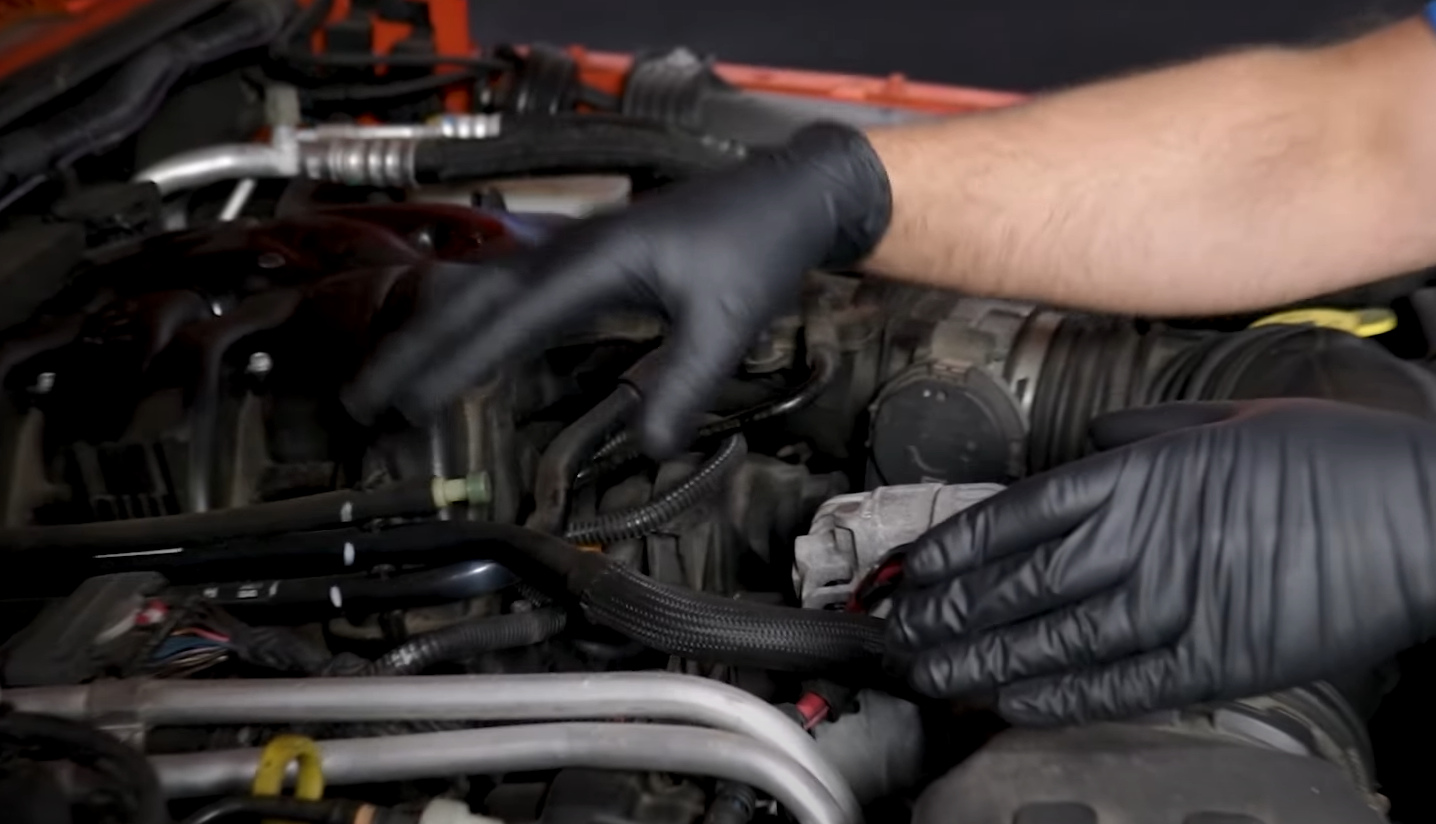

Valve Cover Gasket Leaks
Spotting Oil Seepage
Oil leaking from the valve cover area often gives off a burning oil smell before any visible drips appear. The leak usually starts along the edges or corners of the valve cover. In many cases, the oil runs down onto the exhaust system, causing smoke or odor while driving. Checking these areas with a flashlight can help confirm the source.
| Common Signs | What to Look For |
|---|---|
| Burning smell | Especially noticeable after driving |
| Oil residue | Around valve cover edges |
| Smoke | From oil hitting hot exhaust parts |
Impact of a Damaged Gasket
When the gasket fails, oil escapes from the engine and can contaminate nearby components. This not only creates a mess but can also lead to reduced oil levels over time. If ignored, the leak may cause engine performance issues or damage to wiring and sensors exposed to oil.
- Oil loss increases maintenance needs
- Heat from leaking oil can damage parts
- Longer neglect may lead to higher repair costs
When to Replace the Gasket
Replacing the valve cover gasket requires removing several components around the engine to reach it. It’s a tight area, so the job can be time-consuming. A new gasket should be installed once signs of leakage appear to prevent further problems. Using quality replacement parts and proper torque on the bolts helps ensure a lasting fix.

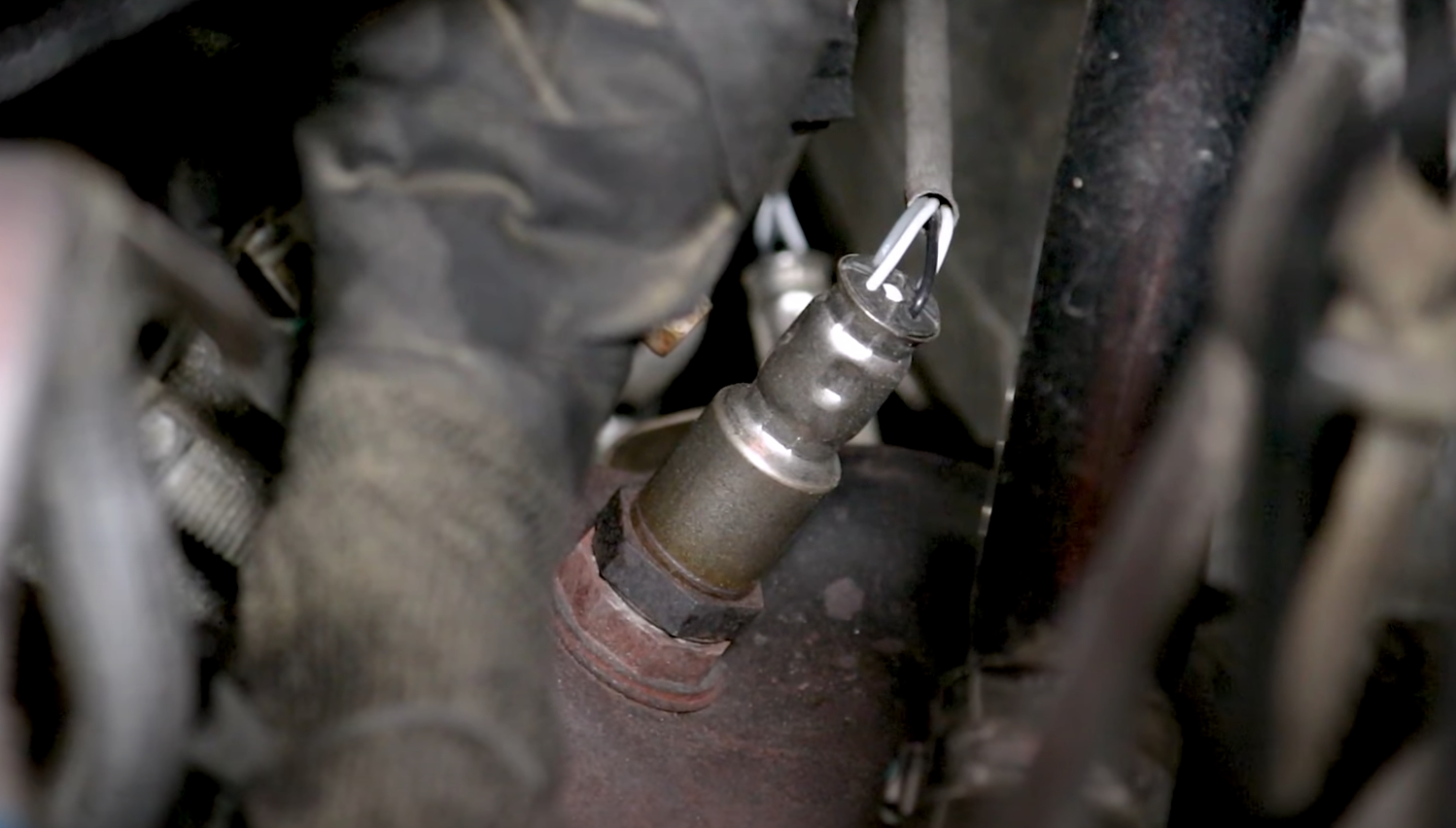

O2 Sensor Failures
Warning Light and Sensor Trouble Codes
When the check engine light appears with an O2 sensor code, it often points to a failed sensor. The Jeep Wrangler uses four O2 sensors, and a fault in any of them can trigger the light. A diagnostic scan tool can confirm which sensor is bad before replacement.
| Common Signs | Possible Cause |
|---|---|
| Check engine light on | Faulty O2 sensor |
| Rough idle | Incorrect air-fuel readings |
| Poor fuel economy | Sensor not sending accurate data |
Effects on Engine Operation
A failed O2 sensor can make the engine run unevenly or cause poor fuel efficiency. The sensor helps manage the air-to-fuel ratio, and when it gives wrong readings, the engine control module adjusts incorrectly. This can lead to rough performance or sluggish acceleration.
Need for Prompt Replacement
Replacing bad O2 sensors quickly prevents damage to the catalytic converter, which can be costly to fix. Ignoring the issue may cause long-term harm to the exhaust system. Regular checks and timely repairs keep the vehicle running smoothly and protect key components.

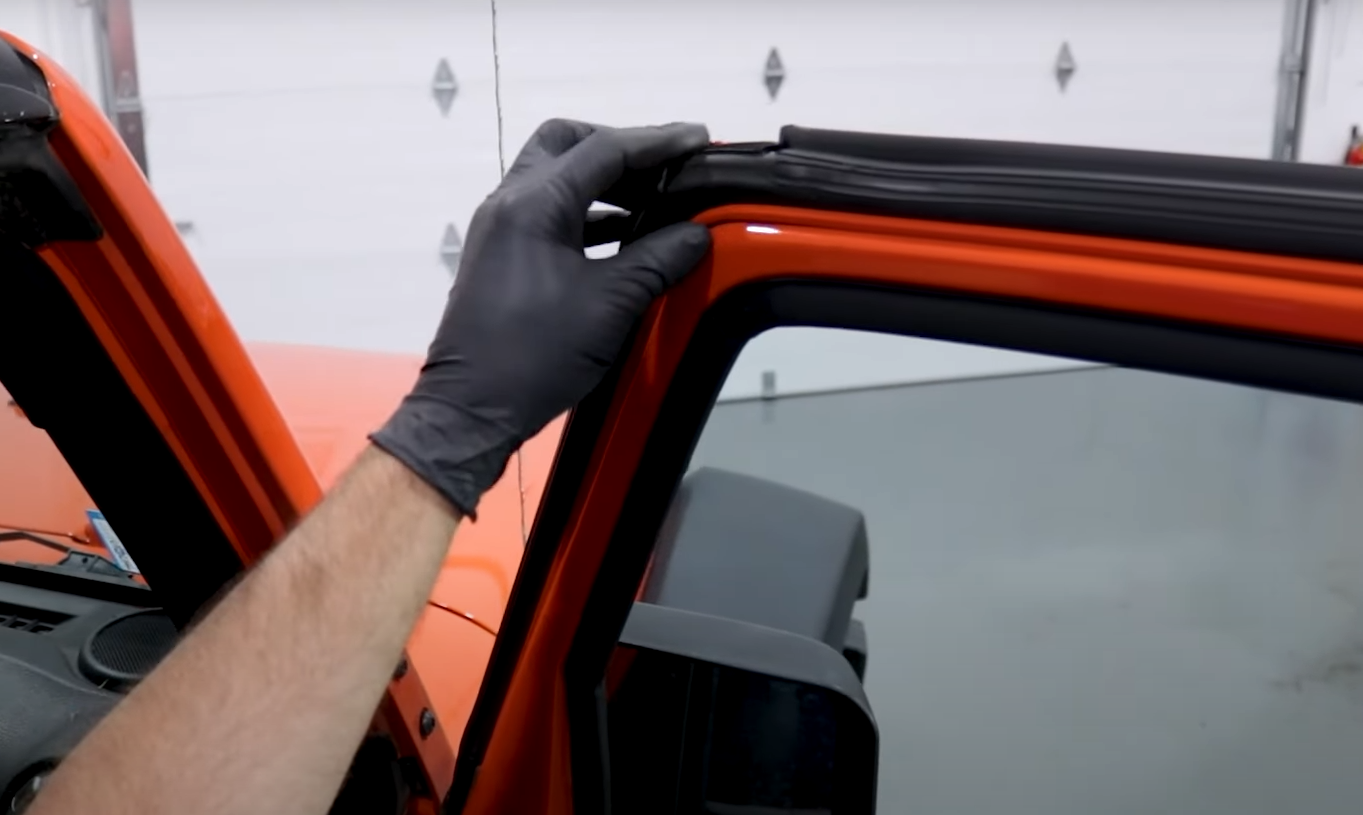

Water Leak Concerns
Typical Areas Where Leaks Start
Water often enters near the top seals or around the door edges. Small gaps in these areas let moisture pass through. Even when the main seal looks fine, water can still slip in through tiny openings.
Common trouble spots:
- Upper door frame corners
- Door gasket seams
- Areas where two seals meet
Checking these locations first helps identify the source quickly.
Seal Check and Repair Options
Inspect the rubber seals for cracks, flattening, or dry spots. If the gasket looks damaged or loose, replacing it usually helps. When a new seal doesn’t stop the leak, adding foam tape or a thin layer of sealant behind the gasket can improve the fit.
| Problem | Recommended Fix |
|---|---|
| Cracked gasket | Replace with new seal |
| Minor gap | Add foam tape or sealant |
| Loose fit | Adjust or reseat gasket |
Testing with a small stream of water after repair confirms if the leak is sealed.
Protecting the Cabin from Moisture
Water that seeps past the seals can collect under floor mats or carpet. Even if the top layer feels dry, moisture may sit underneath. Regularly lift the mats and check the padding for damp spots.
Simple prevention steps:
- Keep seals clean and free of dirt.
- Dry the interior quickly after any leak.
- Inspect the floor area after heavy rain.
These steps help prevent odor, rust, and long-term interior damage.
Conclusion
Regular maintenance helps keep the third-generation Jeep Wrangler running smoothly. Changing coolant, checking gas caps, and replacing valve cover gaskets or O2 sensors when needed prevent larger issues.
Common maintenance checks include:
- Flushing the heater core carefully
- Inspecting EVAP components for leaks
- Watching for oil smells or residue near the valve covers
- Replacing faulty sensors to protect the catalytic converter
- Sealing door and roof gaskets to stop water entry
| Problem Area | Simple Fix or Prevention |
|---|---|
| Heater Core | Flush or replace; change coolant regularly |
| EVAP System | Check gas cap and vent valve |
| Valve Cover Gaskets | Replace when oil leaks appear |
| O2 Sensors | Replace to maintain engine performance |
| Water Leaks | Adjust or reinforce gaskets |
These actions reduce repair costs and extend the vehicle’s life.
