Stu’s comments: I received an e-mail about mid-February regarding Shad’s AW-4 swap into his YJ. While he knew my site’s focus was for TJs, we both agreed that beefing up the site’s AW-4 content, in this case for the YJ folks, would be a good thing. Because the other AW-4 transplant write-ups come up pretty high in the Google search engine, lots of folks end up on the site even though they may not have a TJ. Well, now there is some very excellent information, thanks to Shad. He wasted no time putting together the write-up and photos and sending them along in a few e-mails.
I’ll admit that I wasn’t totally up to speed on the Renix AW-4. A quick spin through Wikipedia filled me in on most of the highlights. In many ways, I believe Shad had more of a challenge than I did when I did my AW-4 swap.
So…..without any further delay, here is Shad’s write-up about his AW-4 project.
I have been thinking about an automatic for a while now. When I’m climbing boulders and steep terrain or sitting in stop-and-go traffic, my right arm and left foot get quite a workout. I also have a short throw shifter that requires some arm strength so that probably doesn’t help much. An auto would greatly benefit when I’m out climbing rocks. Balancing the clutch, gas and brake while at extreme angles doesn’t quite produce the nice, smooth ascent I would like.
I happened across a buddy’s ’87 Cherokee Laredo with some nasty electrical problems. Problems so severe that it has been sitting in a parking lot for 2 years because that’s where it died. He gave it to me before it got towed away. I jumped and spliced what I could and it started.
I limped it all the way home and into my driveway and there it gasped its last breath. I did everything imaginable to get that sucker to fire but the electrical gremlins won. It’s a RENIX system so the parts are a bit hard to find. The cost to replace the yet unreplaced sensors, ECM, injectors, coil, tires, body pieces and a cheapo coat of paint would have pushed the repair bill to double the Blue Book value. Even then, I’m just not an XJ guy.
I took the transmission, torque converter, flexplate, dust shield, transmission control unit, plug ends, shifter, shifter cable, crossmember, cooler lines, trans mount, transfer case, linkage, transfer case lever, TV cable, wheels and the brake pedal.
The local wrecking yard came for the rest. Hopefully the other useable bits have found a good home.
Renix AW-4 Transmission Swap into a YJ

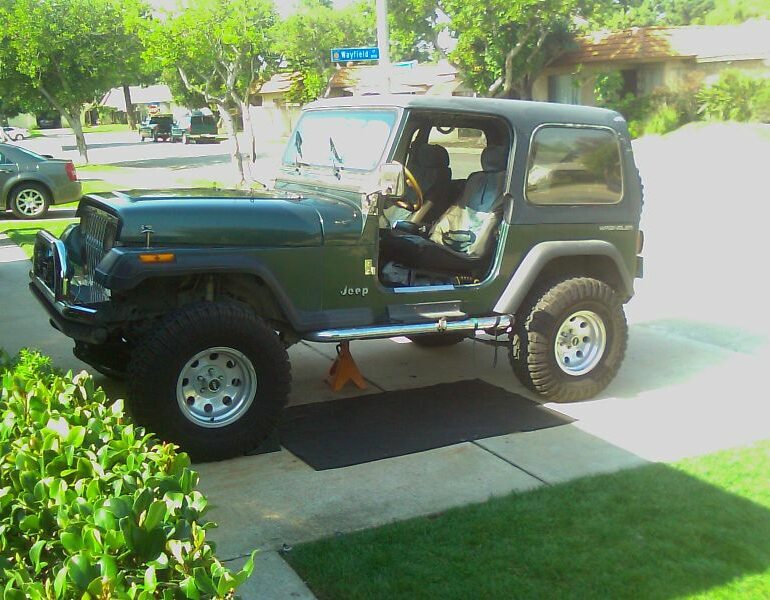

’87 XJ AW-4 into ’93 YJ
I used a very small flat blade screwdriver to rotate the torque converter through the bolt holes in the flexplate until the threads lined up. I twisted one bolt in there finger tight. I used a larger flat bladed screwdriver to rotate the flexplate tooth by tooth until I got all 4 bolts in finger tight. I torqued them down using the screwdriver to resist rotating the whole flexplate. The transmission cooler plumbing was a pretty close match between the XJ and the YJ. I had recently replaced the radiator and Radiator Barn was nice enough to add hose nipples to the bottom of the radiator for me. The output line had a quick connect fitting right near the passenger side fitting. I used the short quick connect end to go straight into the radiator. I had a B&M Supercooler to install so I didn’t need any of that
quick connect stuff for the other end. I mounted the Supercooler in front of the AC condenser right behind the grill using the metal straps in the B&M kit. I plumbed the hose out of the radiator and into the bottom of the Supercooler. From the top of the Supercooler, I ran a hose to a barbed splice in the factory rubber hose. From there, it returns to the transmission. I needed to create a hanger from the oil pan to hold the lines tight.
I bolted the skid plate back on and bolted the trans mount to the skid plate. I cut the exhaust hanger off the pipe and installed it. I then took care of the rest of the wiring, minus the park/neutral switch and the reverse lights.
This TCU requires a reversed signal from the throttle position sensor. What I mean is, the engine’s TPS is a 5v system. At idle, the engine’s TPS sends out 0V and gradually sweeps up to +5V at full throttle. This particular transmission control unit (’87-’90) has a reverse sweep. +5V at idle and drops as the throttle is opened. I attempted to build a voltage reverser with various resistors, condensers and a 555 timer but all I could come up with was a logic circuit. +5 volts or 0 volts with no sweep. I gave up after a few hours of playing with this. If anybody knows how to do this properly, I’d love to know.
I bought a GM style TPS from the local auto parts store. It’s from a 3.8L V6. I chose this one because it’s cheap, adjustable and comes with an arm as opposed to a socket.
I bent some steel to form a bracket that bolted to the throttle body and added some ball chain to connect the two.
The sweep from the throttle linkage was a little greater than the sweep from the TPS so I needed to build a little bracket to prevent the ball chain from snapping at wide open throttle. After a little tweaking, I was able to get +5.1V at idle and +1.8V at wide open throttle. It’s not 0V but it will do for now. I’ll come up with a better system later on. I added about 1.5 quarts of transmission fluid to the transfer case and 6 more quarts to the transmission (8 total). Then I went back over every single bolt I touched to make sure I torqued everything. I set the TV cable by pressing in the button, twisting the throttle to wide open and releasing the button. This is supposed to set it automatically. I put the negative cable back on the battery and turned the ignition to ON. I looked over everything and it all seemed to be OK. No fuses blown, TCU is staying cool. Time to go for it! I turned the key to start. It cranked but no start. It’s acting more like an XJ already…
Renix AW-4 Transmission Swap into a YJ
’87 XJ AW-4 into ’93 YJ
That night I retraced all my wiring diagrams and decided it was related to the crankshaft position sensor. I went back to the AX-15 flywheel and counted the teeth that trip the crankshaft position sensor. I counted 3 sets of 4 gaps with the rest solid. The XJ flexplate did not look like this. It had a bunch of holes and gaps throughout the diameter. I did a search online and found out that the RENIX system used a different flexplate than the OBD-I and OBD-II systems. It didn’t dawn on me until just then that the flexplate is an engine component, not a transmission component. I borrowed a car and drove to Scotty’s in Fresno and picked up a flexplate off a ’95 Cherokee. This one looked much better. Mostly solid ring with 3 sets of 4 holes. 4 hours later, I had the new flexplate swapped in. I turned the key and it fired right up!
I’m using the XJ’s front driveshaft as a rear driveshaft but I’ll need to shorten it. I installed mounting plate to the flange on the 8.8 rear end. I bolted in the CV end of the driveshaft to the yoke and held the shaft up to the side of the mounting flange. I placed marks on the driveshaft at the front and back of the u-joint mounting hole. Measuring from the center of the marks to the center of the front u-joint gave me the ride height length. I had 15.5�. I was almost directly lined up with the rear end so I didn’t need too much room to compress. I estimated about a half inch. I added a quarter inch for good measure. My new compressed measurements were 14.75�. Since the XJ’s front shaft measured well over 30�, a pretty good chunk would have to be taken out. I called OC Driveline and talked to Roy. He told me that since I was planning on replacing the u-joints, I should do it now so he can get a better balance out of it. He also told me to install the flange at the rear so it’s complete when he gets his hands on it. I had 3 sets of Super Strength Precision U-Joints with flush mount grease fittings in the cap ends(#280) and a u-joint/ball joint press ready to go. I took the old u-joints off and inspected them. They were rusty and a bit dry but still functional. They could have been originals. I popped the CV knuckle apart to inspect the parts inside. This was my first CV joint so I was taking mental notes as I was going along. The parts were pretty dry but functional. The rubber was still intact and the needle bearings were in good shape after a cleaning. I packed the needle bearings in with grease to hold them in place and slid the shaft in to check its movement. It felt pretty good. I separated it again and installed both u-joint crosses. I pressed the hats on from the outside while holding the CV portion tight to compress the spring on the inside. This is a pain in the butt! There was probably an easier way to do this but I don’t have this mastered yet. Once everything was together, I installed the clips at the ends making sure that the shorter clips went in where the grease fittings were going to go. Since I didn’t have the right fitting for my grease gun yet, I squirted as much grease as would fit into the open hole with my small needle fitting. I capped the hole with the flush mount fitting and that seemed to do an adequate job of pressing the grease in for now. I tucked the end of my needle under the rubber boot inside the CV knuckle and packed it full of grease. I spun the shaft around to the non-CV side and pressed out the u-joint. I replaced this u-joint with the same style that went into the CV portion. It wasn’t necessary but it looked good and I’m starting to really like the idea of flush mount grease fittings. As soon as I can find them in the right thread pitch, I may replace all the zerks around the jeep with these. They look MUCH harder to snap off on a rock.
I popped the transfer case into 4 high and drove to the driveline shop which was about 10 miles away. Driving only on the front axle is a very scary experience, especially in Southern California traffic. This was my first real test of the Jeep. The first thing I noticed was that the shift points were too high. I was trying to gingerly drive the thing so I didn’t screw up my front shaft or transfer case. I gave the shop my specs and the driveshaft. He was going to have it for me by the same time tomorrow. On the way home, I hit some major traffic. The engine and transmission got pretty toasty. I could feel it through the clutch master hole in my firewall that I had yet to cap off. Once I was past the freeway obstruction, I got into the throttle a little. When I got up to about 70mph, smoke started pouring out the back of the Jeep. I slowed down and got into the right lanes and the smoke stopped. I followed some big trucks home so I didn’t have to worry too much about my speed. Once at home, I checked the transmission fluid level and it was a bit over full. Strange. I checked it cold before I left and it was barely on the add mark. The transmission only had 8 qts in it and to my knowledge held 9.5qts. This was something other than too full I think. Air bubbles in the lines? Foaming in the transmission? Don’t know. The vent tube was a little on the short side. It went from the top of the transmission to a little metal fitting on one of the bell housing bolts. It couldn’t have gained more than 2 inches in height from the top of the transmission. My old vent tube went all the way up to the top of the firewall. I added a section of hose to the little metal fitting and clamped it down. I looped the other end to an empty bottle just to see if I could get it to cough out any more fluid. It was behaving now. I clipped the hose just before the top of the firewall and capped it with an anti-siphon valve.
Renix AW-4 Transmission Swap into a YJ
’87 XJ AW-4 into ’93 YJ
Manual YJs have a pigtail near the transmission that supplies power to the reverse lights from a switch and provides a ground loopback for the starter relay. I unplugged this connector and spliced the reverse light lead from the TCU. I removed the loopback ground wire since I already spliced the start/neutral safety switch from the TCU to the YJs wiring harness. I basically just activated the circuit by removing the loop. I filled the extra holes with silicone and plugged the connector back together.
The Cherokee had a switch in it for POWER or COMFORT. These are pretty vague terms but I knew they were related to transmission valve pressures and whatnot. The switch applied +12V to the C11 pin of the TCU for POWER mode and 0V for COMFORT. I unplugged the C11 pin from the TCU just to see the difference. On my test drive, the 1-2 up shift point was dropped to about 1700RPM. I didn’t feel a 2-1 down shift but for all I know, there may not be one. I didn’t feel one in POWER mode either but it may just not be as pronounced as the 3-2 down shift. I added a switch to the dash for good measure but I know I’ll drive around most of the time with it in POWER mode.
I went to pick up the new driveshaft and it wasn’t done yet. That’s fine, I wasn’t in a huge hurry. I was invited into the shop to watch the process. I was so jealous of the tools in that place. Roy put the shaft onto a lathe and ground the ends of the solid portion to spec. He chopped the tube down to the right size on a cold saw. I kept my distance for this part but there were some sparks and banging and the glow of a very large welder coming from the back of the shop. He walked it over to me and it looked GREAT! He popped it on his balancer. This thing is monstrous! It had to be 20ft long. I only needed the first foot and a half of it. He spun it up and it looked straight to me. He rotated it to a certain point and used a torch on it and then immediately quenched it with water. He did that about 5 more times and spun it up again. He then added some weight to the front and back and a wire to hold it on. After some adjustment of the weights, he welded them on and applied a coat of paint. I didn’t fully appreciate his attention to detail until I got it back on the Jeep and got it up to speed. I’ve never felt such a smooth ride. I’m sure my old shaft was out of balance from all the banging around on rocks.
So now I have an AW4, beefy driveshaft and a bulletproof rear end. Everything is maintained, freshened up and in good shape. I now have no idea where the weak point is in my drive train. I hope it’s not that crankshaft I nicked.
Renix AW-4 Transmission Swap into a YJ
’87 XJ AW-4 into ’93 YJ
| 1993 YJ and 1987 AW4 Swap Wiring Diagram |
||||||
|
FROM |
TO |
|||||
| Connector | Pin | Color | Description | Connector | Pin | Color |
| Trans Range Sensor | A | YEL | 12V Ignition (15A Fuse) | PCM | 9 | DK BLU |
| B | BLK/WHT | P/N Safety Switch Conn | PCM | 30 | BRN/YEL | |
| C | BLK | P/N Safety Switch Ground | PCM | 11 | BLK/TAN | |
| Black | E | WHT/BLK | Back-up Lights | Trans Pigtail | VIO | |
| G | GRY/WHT | TRS D | TCU | C9 | GRY | |
| H | GRN/WHT | TRS 1-2 | TCU | C8 | LT BLU | |
|
FROM |
TO |
|||||
| Connector | Pin | Color | Description | Connector | Pin | Color |
| Trans Control Assm | B | BLK | TCA | PCM | 11 | BLK/TAN |
| C | WHT/BR | Road Speed Sensor | TCU | C3 | TAN | |
| E | WHT/BLK | S3 (Converter) | TCU | C14 | WHT | |
| Grey | F | VIO/WHT | S2 | TCU | C15 | VIO |
| G | BLU/WHT | S1 | TCU | C16 | BLU | |
|
FROM |
TO |
|||||
| Connector | Pin | Color | Description | Connector | Pin | Color |
| Trans Control Unit | C3 | TAN | Road Speed Sensor | TCA | C | WHT/BR |
| C4 | YEL | Trans Diag Data | (not used) | |||
| C5 | BLK | Ground | PCM | 12 | BLK/TAN | |
| C8 | LT BLU | TRS 1-2 | TRS | G | GRN/WHT | |
| C9 | GRN | TRS D | TRS | A | GRY/WHT | |
| C10 | LT BLU/YEL | Brake/Torque Conv Signal | PCM | 29 | WHT/PNK | |
| C11 | TAN | Power Input Signal (Switch) | PCM | 9 | DK BLU | |
| C14 | WHT | S3 (Converter) | TCA | E | WHT/BLK | |
| C15 | VIO | S2 | TCA | F | VIO/WHT | |
| C16 | BLU | S1 | TCA | G | BLU/WHT | |
| D1 | RED | Throttle Position Sensor (5V PWR) |
TPS | C | ||
| D2 | GRY | Throttle Position Sensor (Input) |
TPS | B | ||
| D3 | TAN-ORG | Throttle Position Sensor (Ground) |
TPS | A | ||
| D7 | BLK | Ground | PCM | 11 | BLK/TAN | |
| D14 | RED | 12V Hot | PCM | 3 | RED | |
| D16 | YEL | 12V Ignition (15A Fuse) | PCM | 9 | DK BLU | |
First thing I did was write up a wiring schematic. The RENIX system was much different than the OBD-I based YJ. I had to get my hands on a factory wiring diagram for an ’87 Cherokee and a ’93 Wrangler.
I placed the components approximately where I thought they should go and measured out the distances. I picked up a roll of 18 gauge wiring and spliced everything together using solder and heat shrink tubing.
Renix AW-4 Transmission Swap into a YJ
’87 XJ AW-4 into ’93 YJ
I knew the XJ had a 21-spline shaft from the transmission to the transfer case and I had a 23-spline on my YJ. I decided to use the transfer case off the XJ. There was nothing wrong with the one I had but I really didn’t want to go swapping shafts and splines if I didn’t have to.
I removed the transfer case from the transmission and it was pretty obvious how far I could clock it.
Oh Oh…..but don’t worry!
