Jeep WJ Grand Cherokee 4.7 Liter HO Engine

Welcome to the JeepSpecs.com in-depth page of WJ Generation Jeep Grand Cherokee’s 4.7 liter HO engine. Did we mis anything? Please get in touch with us and tell us about it!

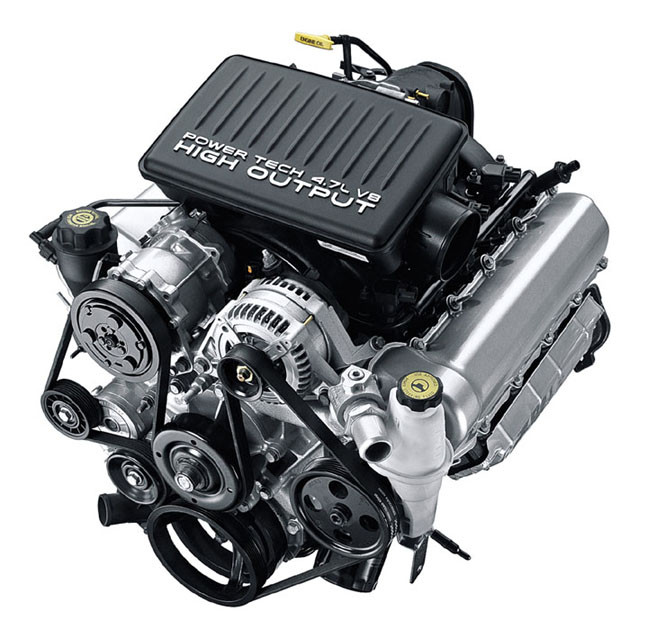

The 4.7-Liter HO engine

A performance enhanced “HO” version of the popular 4.7-Liter V8 engine made its premier in the 2002 Grand Cherokee. The HO engine was a Grand Cherokee exclusive for the 2002-2004 model years, available as an option on Limited models and standard on the Overland – but not available on the Laredo. For the 2004 model year, Jeep added the HO as an option on three new special models, the Freedom Edition, Columbia Edition and the Rocky Mountain edition.

The performance modifications (listed in the chart below) added 30 horsepower and 30 Ft.-Lb. of additional torque. The HO engine is designed to run perfectly on standard octane fuel, but for maximum performance Jeep recommends premium fuel.

The HO engine was discontinued in the Grand Cherokee at the end of the 2004 model year. The all-new 2005 model Grand Cherokee’s offered the new 3.7 V6, the standard 4.7, the 5.7 Hemi and the new 6.1L Hemi SRT engines. Starting at the end of the 2005 model year, the 4.7 HO engine became availble in the Dodge Dakota.

Ho engine model availability – Grand Cherokee

Year / Model Laredo  SE  Sport Limited Overland Freedom Columbia Rocky Mtn
2001 N/A     Pilot models
2002 N/A N/A N/A Optional Standard
2003 N/A     Optional Standard
2004 N/A N/A   Optional Standard Optional Optional Optional
2005 N/A     N/A N/A     N/A

2001 Grand Cherokee HO

What no ones realizes, and being revealed here for the first time, is that the HO engine was originally planned for the 2001 model year. Several 2001 Grand Cherokee models were built with the 4.7 HO engines back in 2000!

Plans for a “future” HO version of the 4.7 were put together when the new engine was original designed for the 1999 model year, back in 1996/1997. The first HO engines were assembled in the fall of 1999 and put into 2001 model pilot Grand Cherokee’s in early February 2000! Twelve of these models were built, complete production versions right down to the HO badges. Colors were Stone White, Patriot Blue, Flame Red, Sienna and Champagne.

These special 2001 HO models also included an exclusive “Sport suspension”, different than that of the Up Country package. Components included exclusive springs (ZKN/ZKT front and ZYN/ZYT rear), Goodyear P235/65R17 BSW AS/P tires, chrome tow hooks and the skid plate package. Even more interesting is the axle ratio, which has never been used on any other Grand Cherokee model, 3.91 !

For reasons unknown, the HO engine was held back until the 2002 model year. It’s possible that for marketing reasons Jeep wanted to introduce the HO with the new Overland model, and to have a key option added to the list of new features being implemented for 2002, the start of the second half of the WJ generation. New features for 2002 included side air bags, adjustable pedals, the Rain Sense wiper system and the Tire Pressure Monitor System. The HO engine was the “icing on the cake” and turned out to be a very popular and successful option.

Summary of HO engine feature differences

(Compared to standard 4.7 liter engine)

HO badge
1. Block – Detonation sensor bosses in the valley 10. Intake – low-restriction intake system (different resonator, air filter, air filter hose and housing)
2. Camshaft – custom profile lobes (designed for increased performance) 11. Knock sensors – two, stereo
3. Connecting rods – modified, with floating wrist pins (vs pressed-fit pins in standard V8) 12. Main bearings – tri-metal (vs bi-metal in standard V8, designed specifically for the HO engine)
4. Crankshaft – forged steel (vs cast iron in standard V8) 13. PCM calibration – unique programming
5. Crankshaft damper – unique to H.O. 14. Pistons – dome shaped for increased compression ratio
6. Cylinder heads – different shaped combustion chambers (for improved airflow). The letters “H.O.” are cast on the front end of the heads. 15. Spark plugs – platinum tipped
7. Exhaust tip – chrome (2002 models only, decontented for 2003 models. Available only as a one-piece assembly with muffler) 16. Valves – unique exhaust valves (same lift as standard V8)
8. Fuel injectors – higher flow (+3.3 lb/hr) 17. Valve springs – upgraded valve springs (intake & exhaust. Larger diameter wire and more coils)
9. Intake manifold – modified (shorter runners)

HO manifold and cams upgrade

Notes: When the HO was first introduced in the summer of 2001, Chrysler service training literature featured statements and warnings that the upgraded parts used on the HO engine were NOT interchangeable with the standard 4.7L engine. So we found it interesting that later on Mopar introduced a “HO” performance cams and manifold kit, considering that these are the exact same parts that the factory used for the 2002 4.7L HO. The Mopar kit includes gaskets and typically takes from 4-8 hours or more to install. It is recommended that BOTH the manifold and the camshafts be installed together if doing this upgrade (not just one or the other).Quite a few Dodge truck owners have successfully installed the manifold and cams into their standard 4.7 engines without any major problems. Most have reported horsepower gains from 5% to 15%, varying at different RPM’s. Anyone interested in doing this upgrade or learning more about it should visit the message boards at DodgeDakotas.com and search through the HO related posts. Some Jeep owners are now considering this upgrade, we’ll report on the results as info becomes available.
The Mopar Manifold/Cams kit is available from Multitronics (“Kolak”)

Manifold and Cams OEM Part numbers:

HO Camshafts:

Left (2002-2004): P/N 53021411AB
(superseded by P/N 53021411AD. MSRP: $192.00)

Right (2002-2004): P/N 53021412AB
(superseded by P/N 53021412AD. MSRP: $210.00)

HO Manifolds:

Note: All manifolds are currently on national back-order or discontinued (as of November 2008)

2002: P/N 53031739AC
(superseded by P/N 53031739AD. MSRP: $264.00. Used only in HO engines for model year 2002)

2003: P/N 53013403AB
(superseded by P/N 53013403AC, then P/N 53013403AD, then P/N 53013403AE. MSRP: $153.00. Redesign of 2002 version, used in both standard 4.7 and 4.7 HO engines for model year 2003)

2004: P/N 53013403AC
(superseded by P/N 53013403AD, then P/N 53013403AE. MSRP: $153.00. Very slight non-performance changes from the original 2003 version. Used in both standard 4.7 and 4.7 HO engines for model year 2004).

(NOTE: Prices listed are for reference purposes only and may vary by dealer. MSRP prices are current as of September 2010. Parts are not available from this web site. Some parts may be discontinued.)

For more photos of the WJ manifolds, see WJ Manifolds

HO low restriction intake system

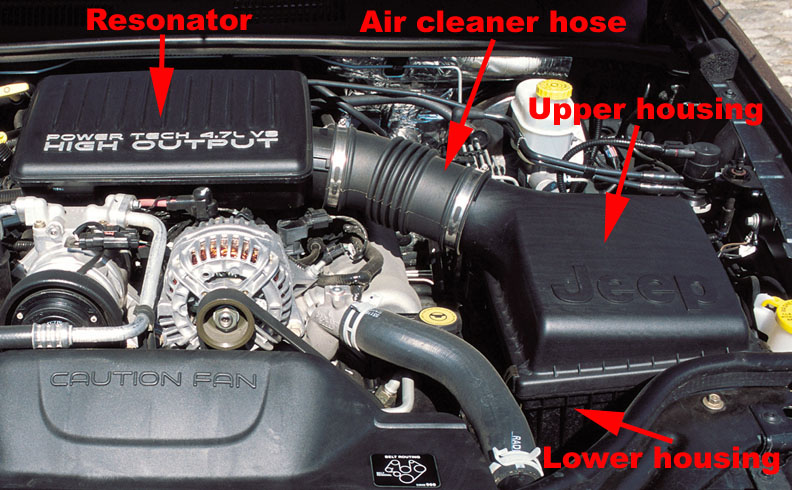

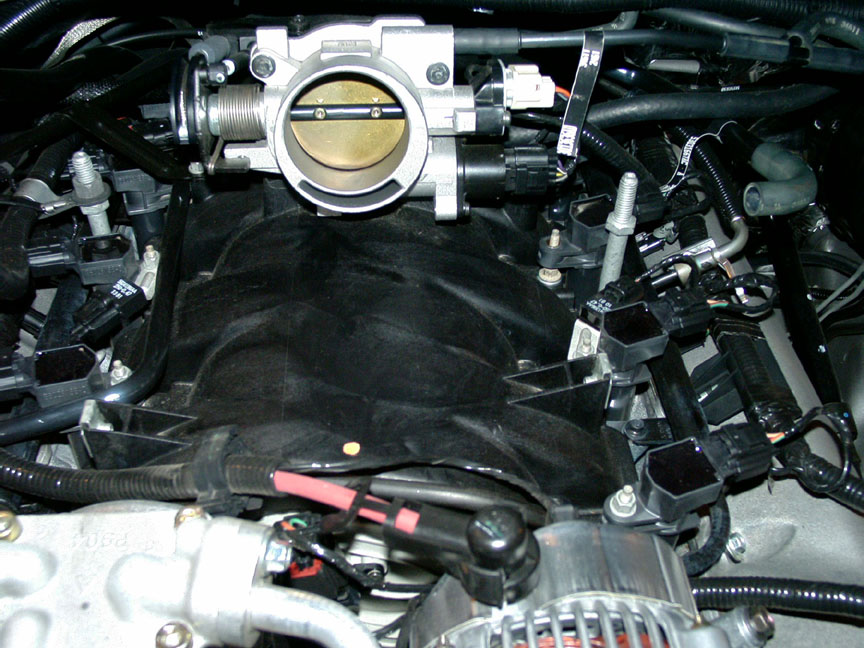

  HO intake system components                                HO manifold and throttle body

HO intake system OEM part numbers

Resonator
Resonator Quantity: 1 P/N 53013417AA
(2002)P/N 53013417AB
(2002-2004)
List price: $ 58.35
List price: $ 70.25
Air cleaner hose
Air cleaner hose Quantity: 1 P/N 53013418AA
(2002-2004)
List price: $ 30.35
(discontinued)
Air cleaner housing, upper
Upper cover Quantity: 1 P/N 5018321AA
(2002-2004)
List price: $ 75.35
Air cleaner housing, lower
Lower cover Quantity: 1 P/N 5018322AA
(2002-2004)
List price: $ 82.75
Air cleaner housing, lower
Filter elementTop:   9-5/8″ x 10-11/16″
Bottom:   9″ x 10-1/8″
Thickness:   1.5″ thick
Quantity: 1 P/N 5015610AAsuperseded by

P/N 5015610AC
(2002-2004)

List price: $ 25.60
Breather tube
Breather tube(Same as standard 4.7) Quantity: 1 P/N 53031667AC
(2002-2004)
List price: $ 23.25
(Note: All parts listed above, except for the Breather Tube, are unique to the HO engine. Prices listed are for reference purposes only and may vary by dealer. Prices are current as of September 2011. Parts are not available from this web site. Some parts may be discontinued.)

HO engine with K&N FIPK installed.
For more information of Fuel Injection Performance Kits see our FIPK page.
Underside view showing the WJ’s muffler and catalytic converters.

4.7 HO Specifications

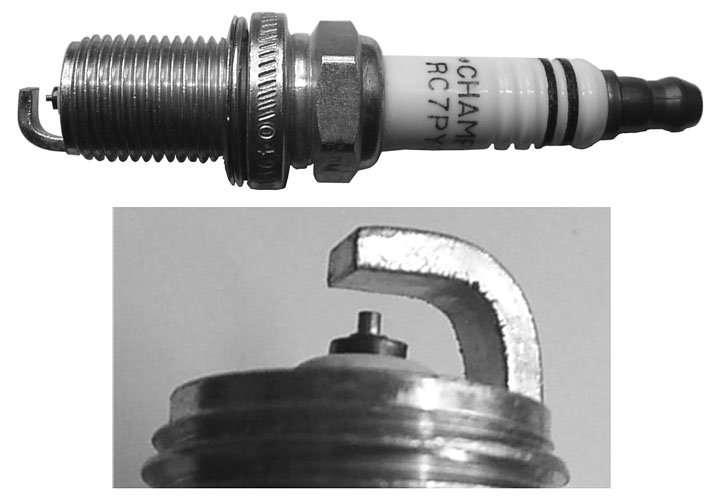

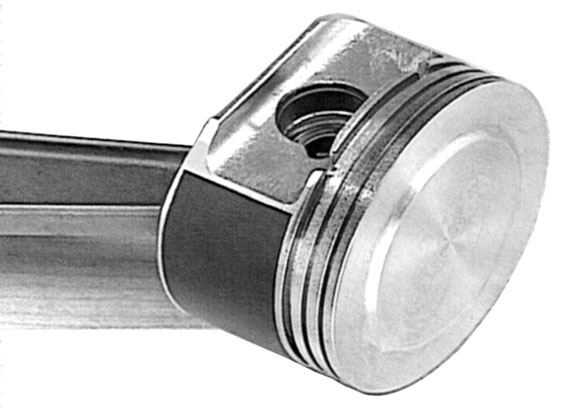

Dome shaped HO piston and RC7PYCB4 platinum-tipped spark plug



General:

Camshaft: Custom profile lobes (designed for increased performance)
Compression Ratio: 9:7.1
Crankshaft: Forged steel, with custom damper
Cylinder Block: Cast-iron block with modified aluminum alloy heads. Detonation sensor bosses in the valley
Cylinder heads: Different shaped combustion chambers (for improved airflow)
Displacement: 4.7 Liters / 287 C.I.
Engine type: 90° SOHC V-8 16-Valve
Engine Power (SAE net): 265-270 BHP @ 5100 RPM
Engine Torque (SAE net): 325-330 LB-FT @ 3600 RPM
Engine Bore x stroke: 93.0 mm (3.66 in.) / 86.5mm (3.40 in.)
Firing Order: 1-8-4-3-6-5-7-2
Injectors: Flow = 25.8 lb/hr @ 49psi
Knock sensors: Two (Stereo)
Lead Cylinder: # 1 Left Bank
Main bearings: Tri-metal construction
Manifold, Intake: Modified (shorter runners)
Oil Capacity: 6 Quarts, 10W30 recommended
Oil pressure: At curb idle: 04 psi min. @3000 rpm, 25-110 psi
RPM Engine speed, maximum: 6000 RPM
RPM Engine speed, tachometer redline: 5700 RPM
Spark plugs: Unique platinum-tipped spark plugs. Type SPRC7PYCB4, .040 in. gap
Throttle body size: 68mm (same as 2002-2004 standard 4.7 engine)

Pistons:

Piston diameter: 92.975 mm (3.6606 in.)
Piston material: Aluminum Alloy, Symmetric pop-up design (for improved compression)
Piston weight: 383.5 grams (13.52 oz.)
Piston pins, type: Full floating
Piston pins, clearance: 0.010 – 0.019 mm (0.0004 – 0.0008 in.)
Piston pins, diameter: 24.017 – 24.020 mm (0.9455 – 0.09456 in.)

Valves:

Valve system: Chain-driven SOHC, 16 valves, hydraulic end-pivot roller rockers. Unique exhaust valves
Valve springs (intake and exhaust): 7.30 coils, 4.77 wire diameter
Intake – Opens (ATDC): 3.0°
Intake – Closes (ATDC): 233.0°
Intake – Duration: 236.0°
Exhaust – Opens (BTDC): 235.0°
Exhaust – Closes (ATDC): 15.0°
Exhaust – Duration: 250.0°
Valve Overlap: 18.0°
Valve lift, Intake (at 0 lash): 12.0 mm (0.4724 in.)
Valve lift, Exhaust (at 0 lash): 10.90 mm (0.4292 in.)
Valve lift (zero lash): Intake 12.0 mm (0.4724 in.), Exhaust 10.90 mm (0.4292 in.)

Speed:

0-60 mph: 6.9 (Motor Trend)
0-62 mph: (0-100 km/h): 8.3 (DCX)
1/4 mile / speed: 15.4 / 86.6 mph (Motor Trend)
Top speed (w/ limiter): 118 mph
Top speed (w/o limiter): 128 mph (DCX)

Fuel:

Fuel Economy mpg (EPA est., City/Hwy): 14/19
Fuel requirement: Regular unleaded, 87 octane. For maximum performance, Unleaded premium, 93 octane.



  1. Hi
    How can I get documentation from Chrysler ON the maximum load ON the hook for my campingwagon? ON my 4.7 OH the maximum is 2360 kg whit brakes, bur other models have 3360 kg.
    My Jeep is registred in Norway.

  2. Hey there.

    I’m currently rebuilding my 4.7 engine from a wj 1999-2000 model and wanted to upgrade the heads to H.O heads due to the fact that my current heads constantly give me issues and mechanics over the years have left their mark(damage) on the heads I currently have.

    So my question is. Can I do the upgrade and will my engine work ?

    Thank you

  3. Exhaust tip? LOL what would be useful in an article like this would be things like did it come with an engine oil cooler? Or were there specific gear sets for Grand Cherokees equipped with the HO engine? Or why did they feel the need to use a forged crankshaft in an engine that makes less than 300hp, HO or not?

    1. With regard to Jeep WJ models, the 4.7 H.O. was never factory equipped with an engine oil cooler. Models with the factory towing package were equipped with a hydraulically operated radiator fan which was powered by the power steering pump. As a result, these were equipped with a power steering cooler, which
      some people may mistake for an oil cooler. With the exception of a few pilot models in 2000-01 (very few ~ like 12) ALL V8 WJ models had 3.73 gears. Towing package did not effect this.
