Jeep WJ Grand Cherokee Interior Colors 1999-2004

Welcome to the JeepSpecs.com in-depth page of WJ Generation Jeep Grand Cherokee interior colors 1999-2004. Did we mis anything? Please get in touch with us and tell us about it!

WJ seat style codes

Seat codes are usually listed using four digits, a combination of the seat style code and the seat color code. For example, “S5L5” would designate a cloth seat (“S5”) in the color Taupe (“L5”). A code of “JLT5” would designate Leather seats in Sandstone. These codes only designate the style and color, not whether they are heated, 6-way, 10-way etc.

For each of the styles and color combinations, different part numbers are assigned for every type of seat (power, heated etc.) The two digit color code is always included in the part number (but not the style code). “P/N XR981L5AA” for example, contains the color code for Taupe, “L5”.

Quality levels – Different seat material quality levels are also used in the WJ’s. In 1999 three diffeent levels were used for leather seats. They are listed in order of quality, “FL”, “DL” and “EL”. Typically, models like the Laredo would feature the lower quality materials while models like the Limited and Overland would use the upper levels.



Type 1999 2000 2001 2002 2003 2004
Cloth
(separate headrest)
H7 H7 E7 E7 E7 E7
Cloth
(built-in headrest)
S5 S5
T5
Leather
(separate headrest)
FL
DL
EL
FL
DL
EL
FL
EL
JL
XL
NL
JL
XL
NL
JL
XL
TL

WJ seat colors / interior colors

Interior seat and trim components are assigned a two digit code, such as “AZ” for Agate. In codes having a number for the second digit, like “K5” (Camel), the “5” designates the shade of the color. In this example, “5” technically designates “Medium Camel”. This is why you see different “color” trim parts described as “Camel”, some may be the lightest Camel (K1) or the darkest Camel (K9). Some part numbers for trim components will contain the 2-digit trim shade, i.e. “P/N 5HD92TL2AD” contains “L2” which designates the shade as “Light Taupe”.

Light Medium Dark
K1 K2 K3 K4 K5 K6 K7 K8 K9
Color 1999 2000 2001 2002 2003 2004
Agate
Agate
“AZ”
X X X
Camels
Medium Camel
“K5”
X X
Taupe
Taupe
“L5”
X X X X X X
Dark Taupe
“L8”
X X
Dark Tan
“K9”
X X
Sandstone
Medium Sandstone
“T5”
    X X X X
Cognac
“UC”
        X
Dark Fawn
“TM”
          X
Dark slate gray
Dark Slate Gray
“DV”
      X X X
Light slate gray
Light Slate Gray
“DB”
(Overland only)
      X X
Dark Slate Gray /Light Slate Gray
Dark Slate Gray /Light Slate Gray
“DV/DB”
(Overland only)
          X X

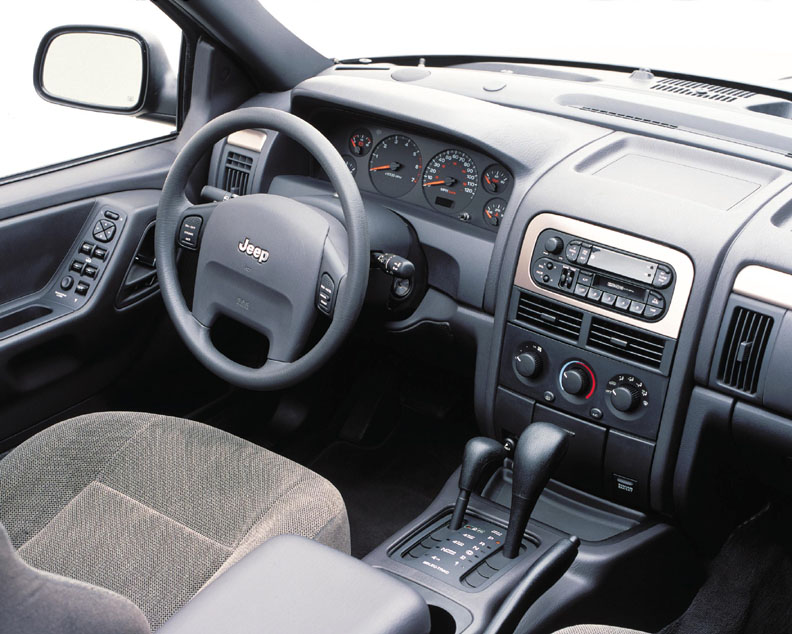

Photo Gallery of WJ Interiors

1999 2000 2001 2002 2003 2004

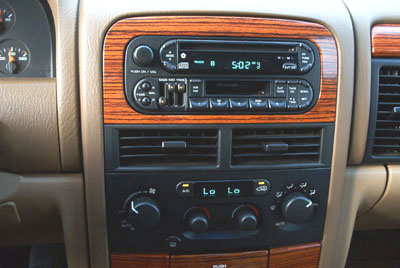

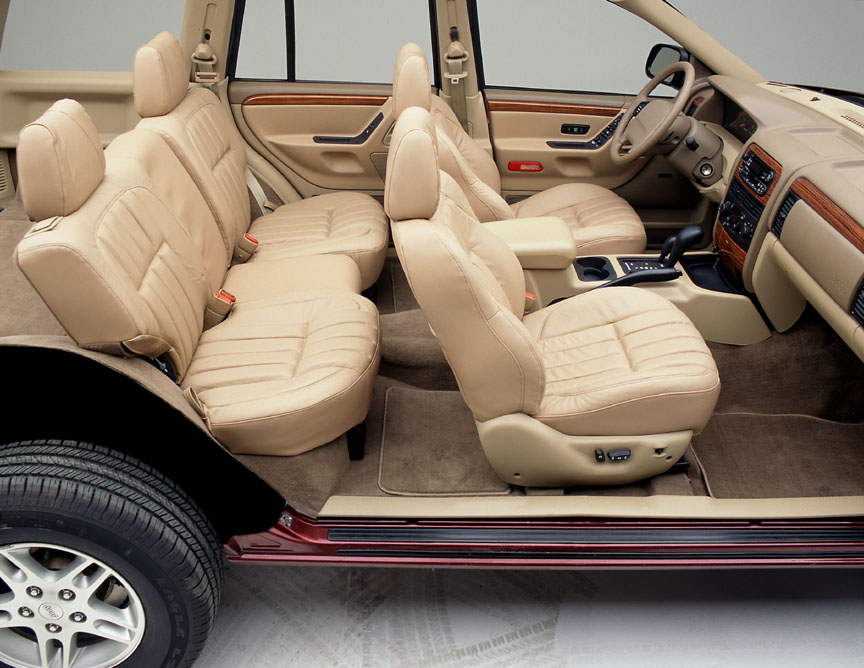

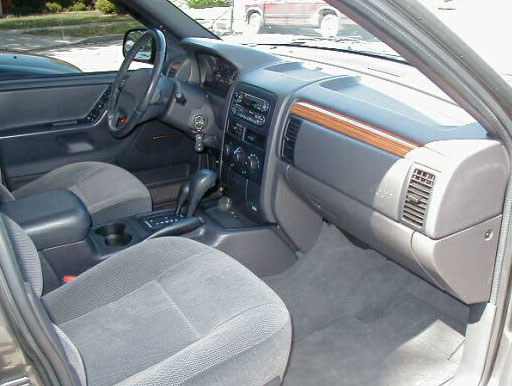

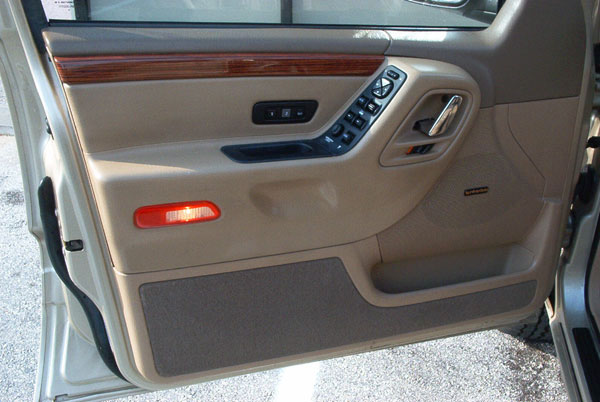

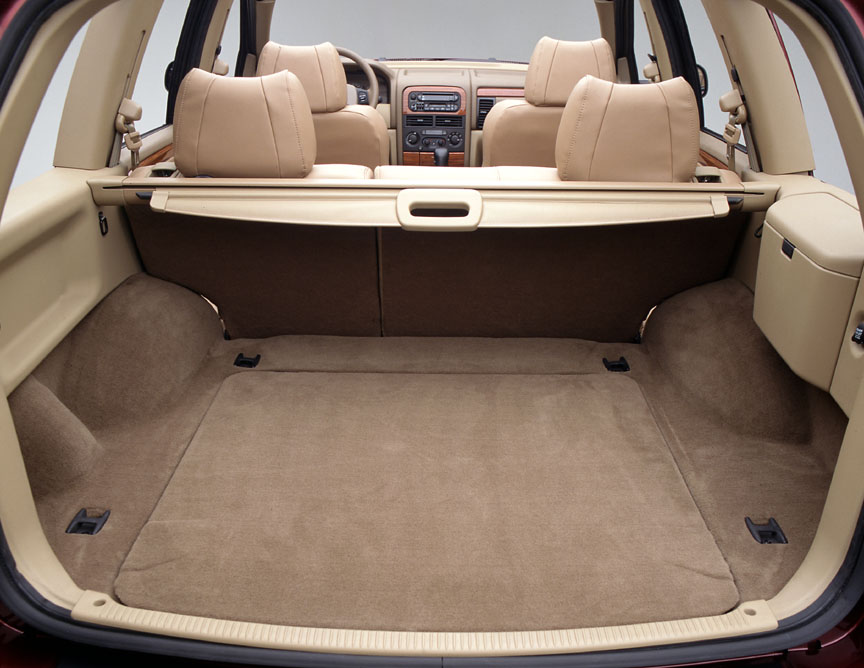

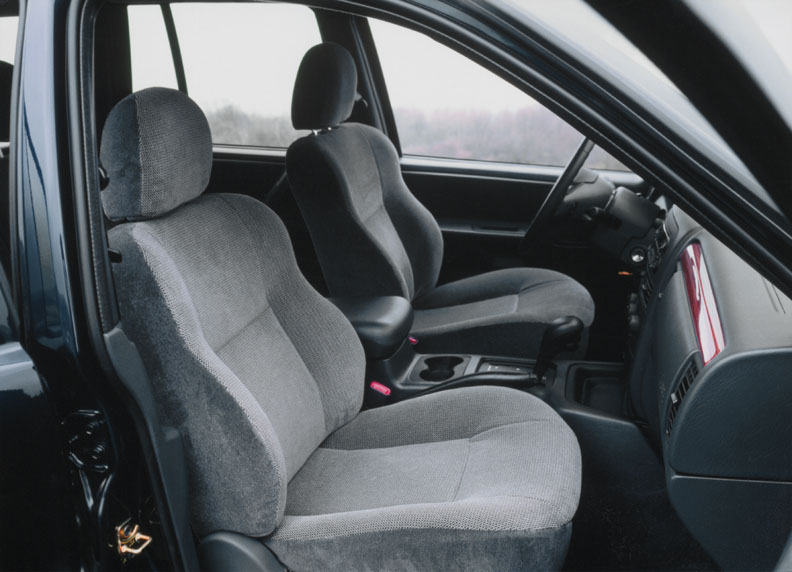

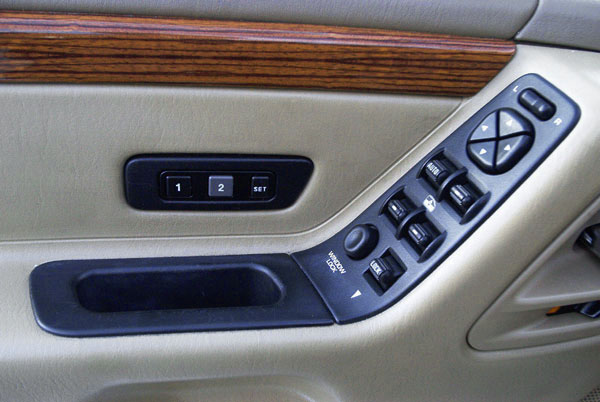

1999 Interiors

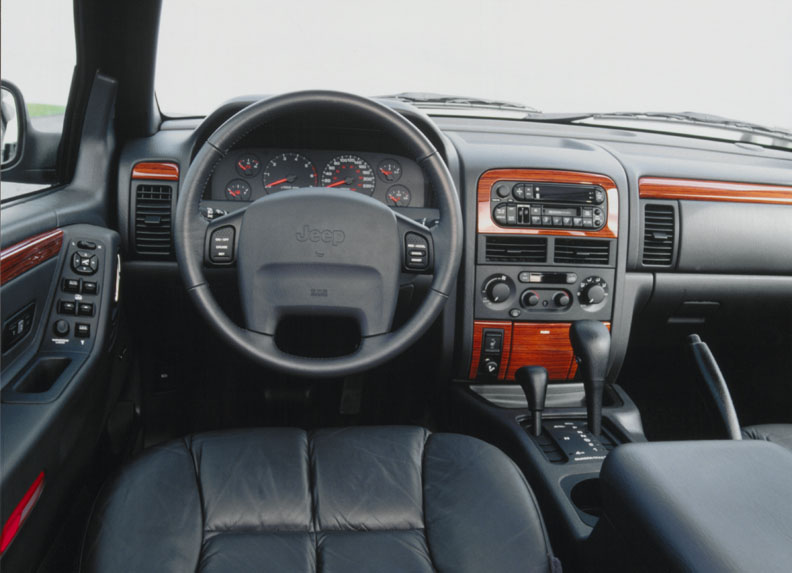

Agate:

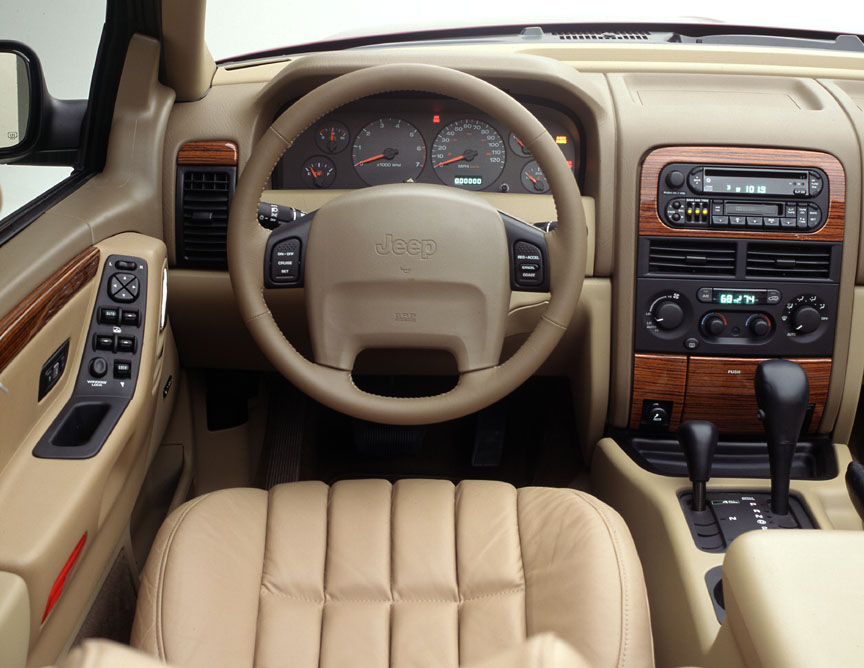

Camel:

Misc:

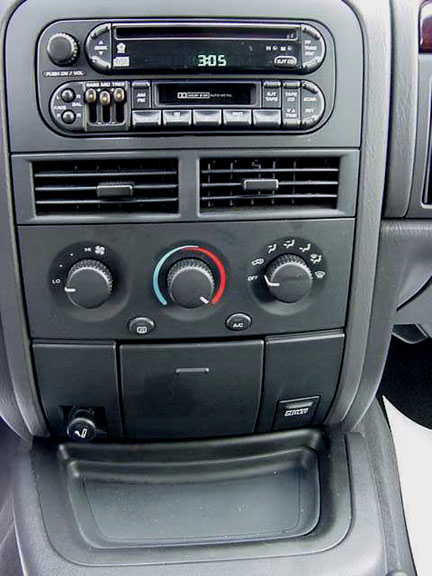

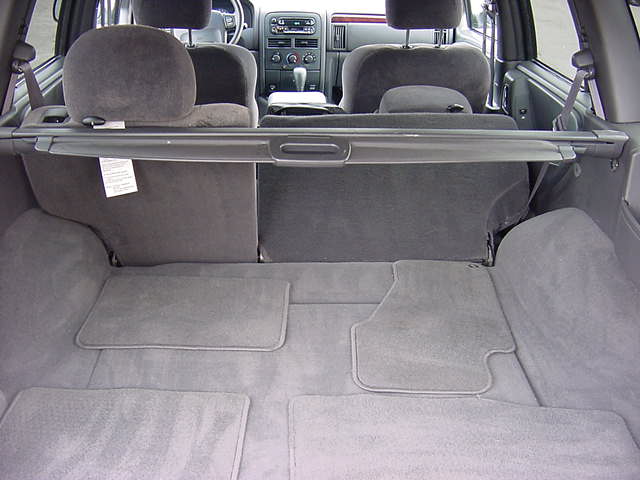

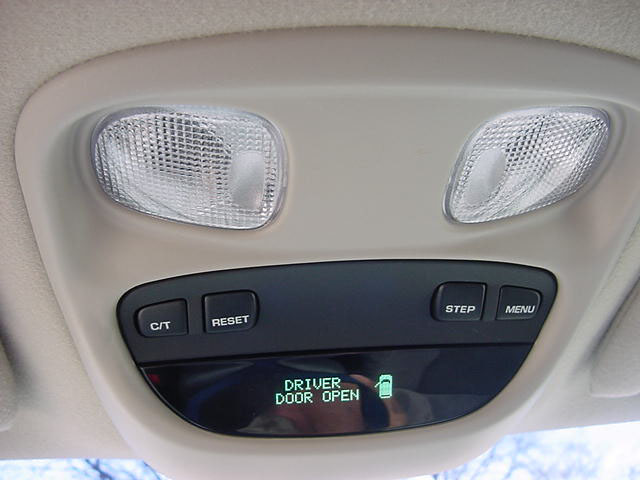

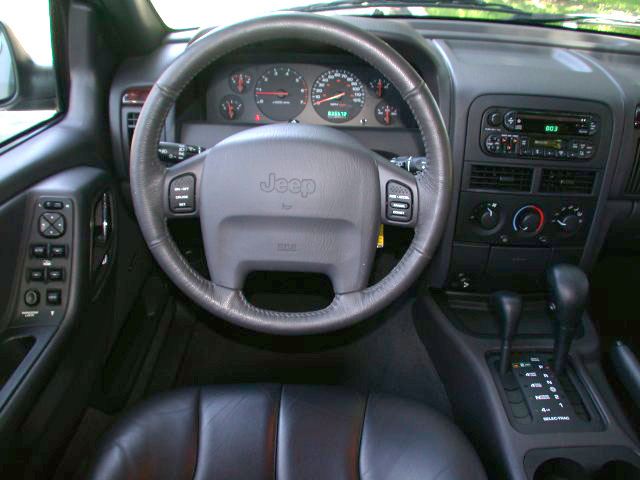

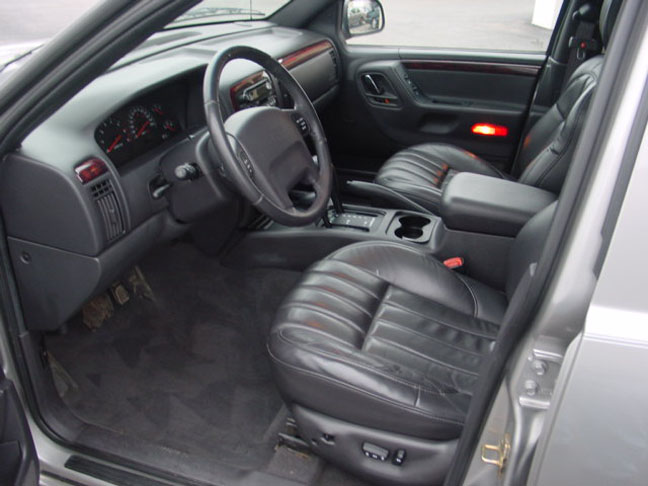

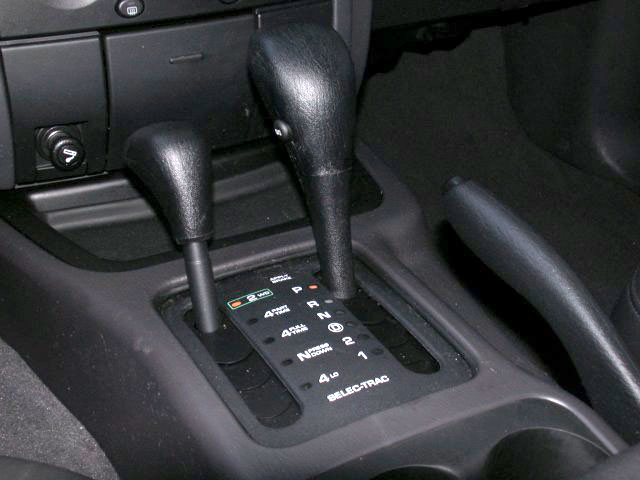

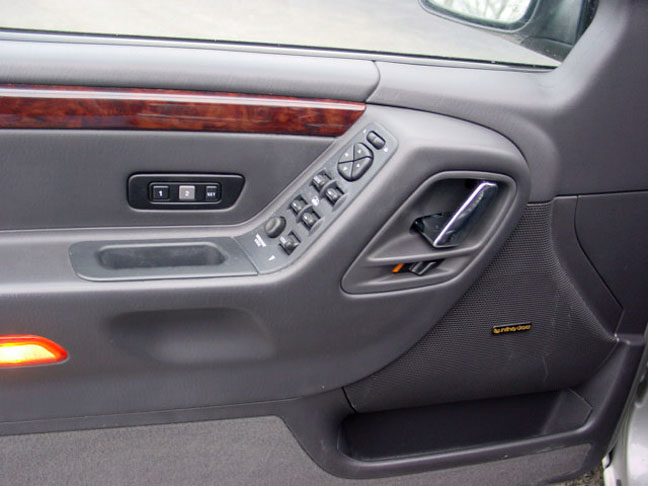

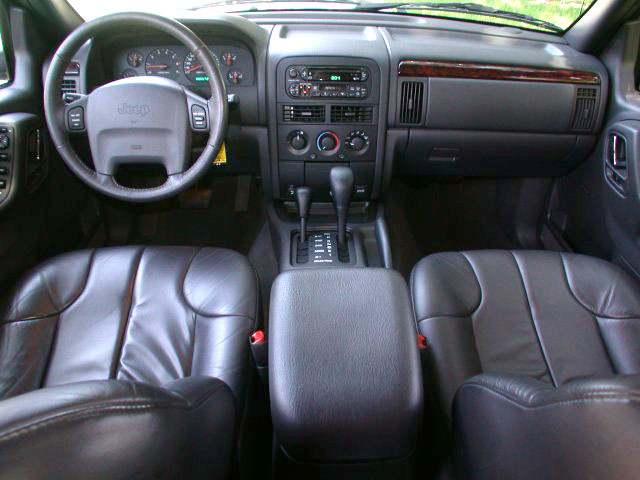

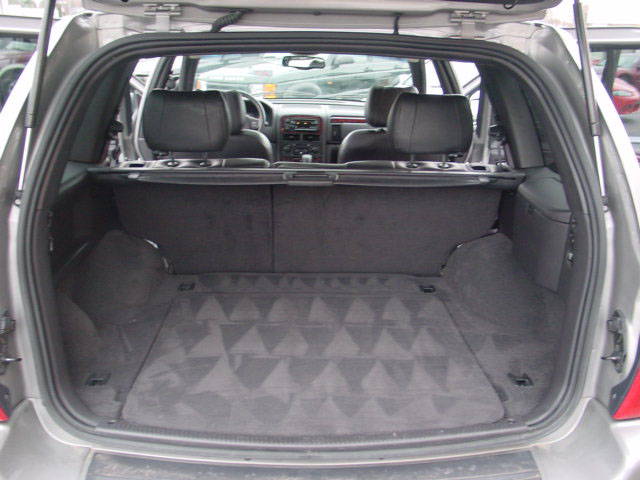

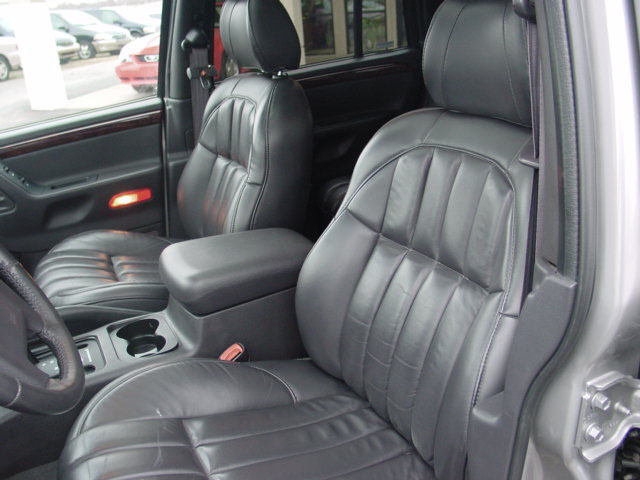

2000 Interiors

Agate:

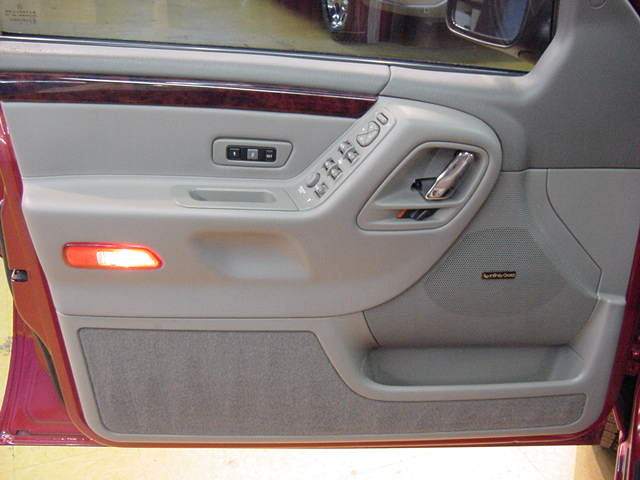

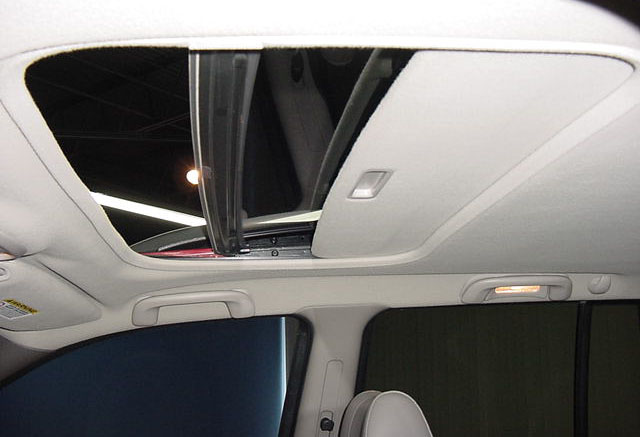

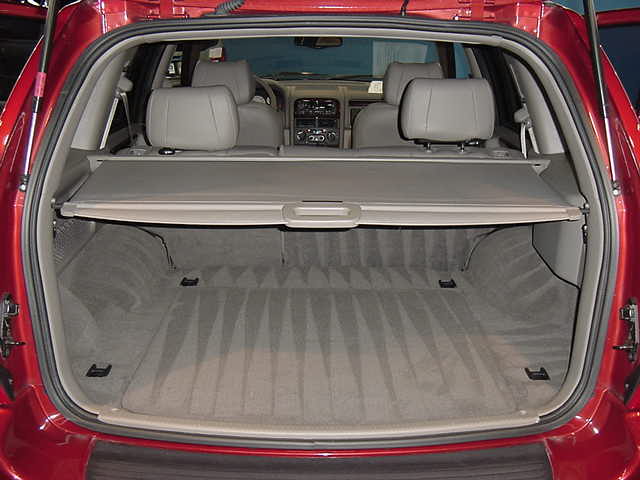

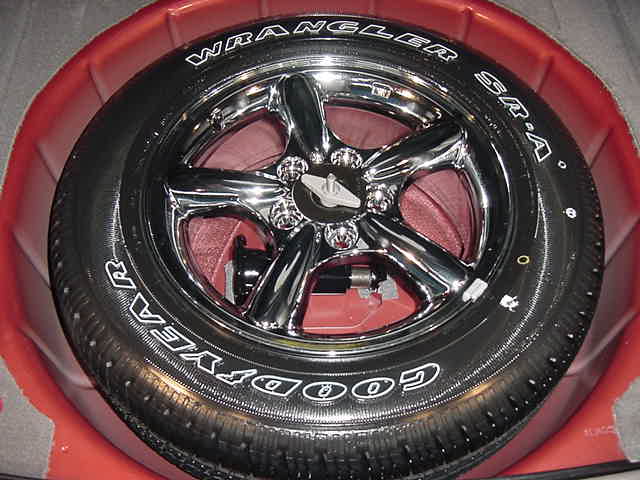

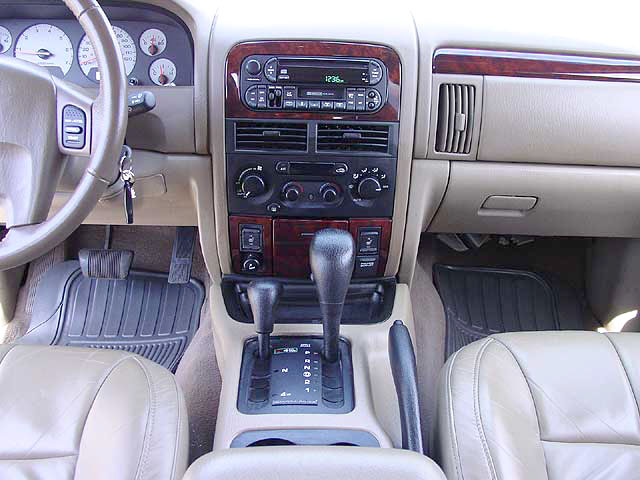

2001 Interiors

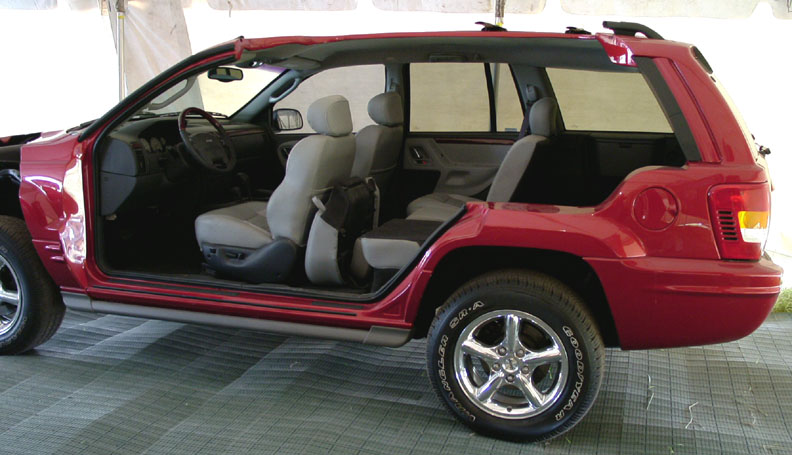

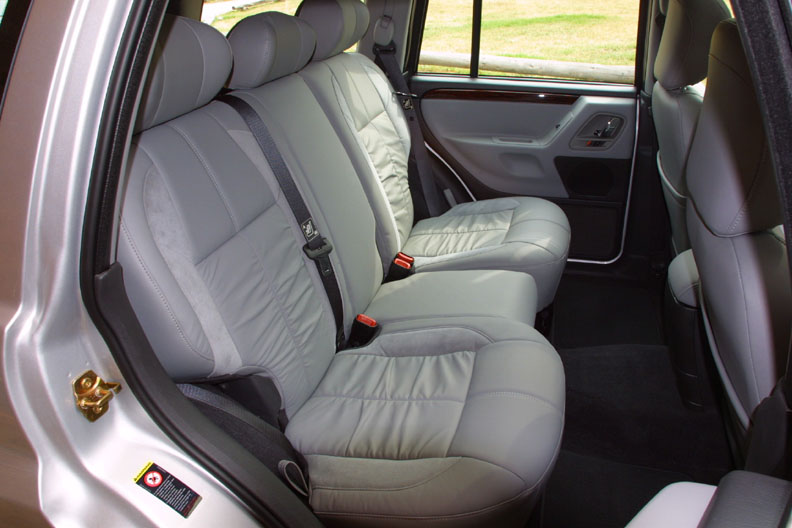

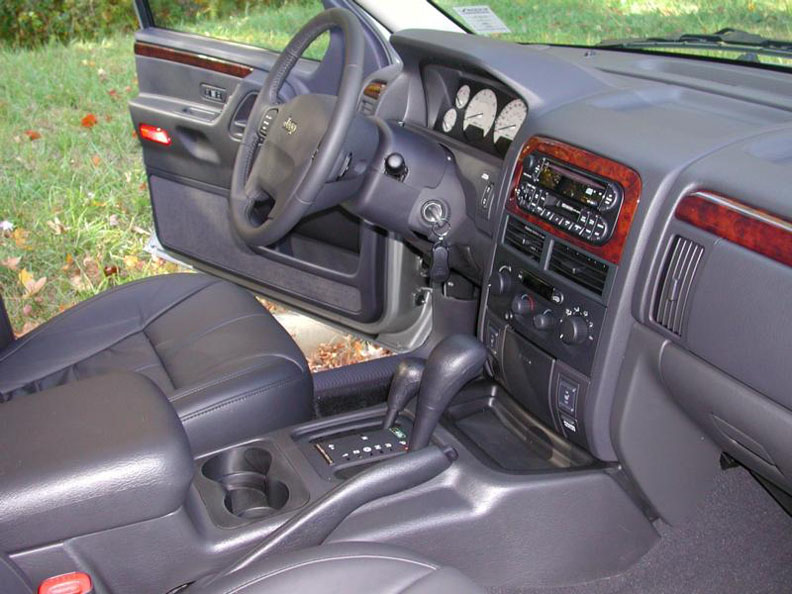

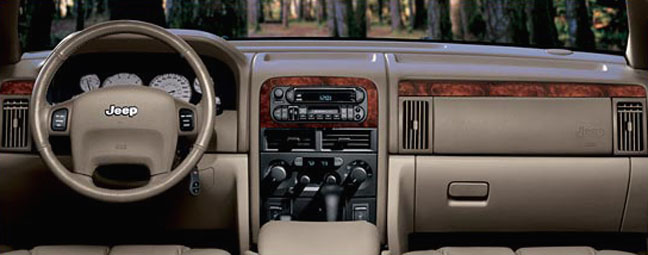

2002 Interiors

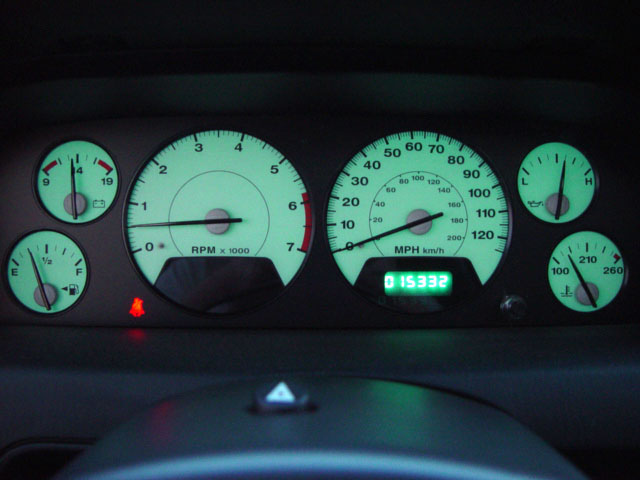

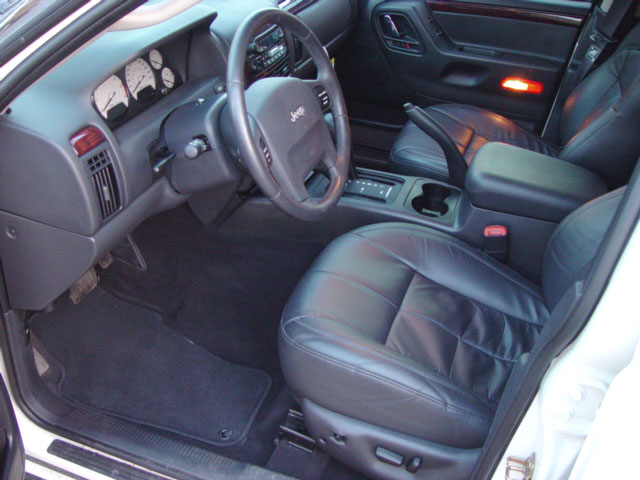

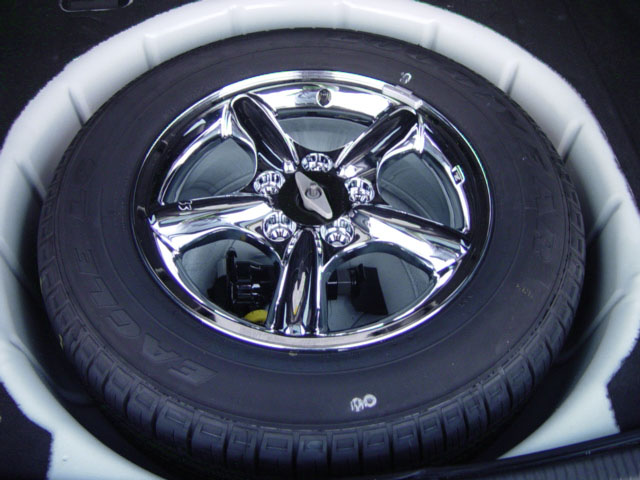

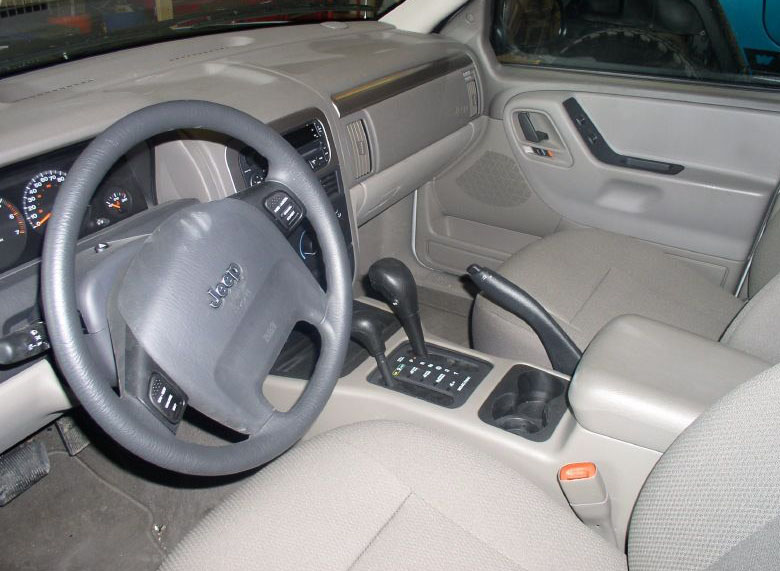

2003 Interiors

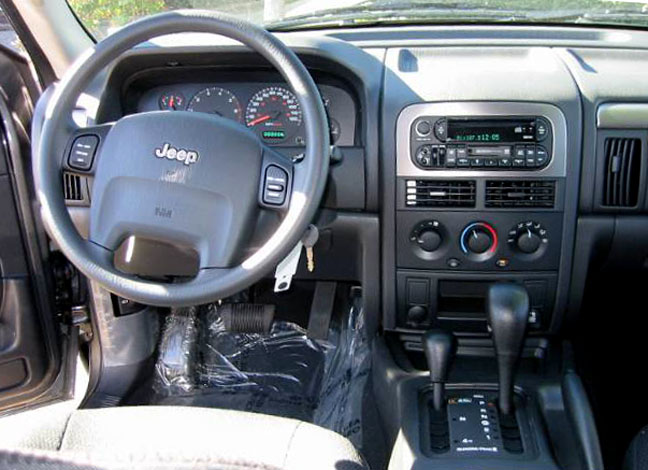

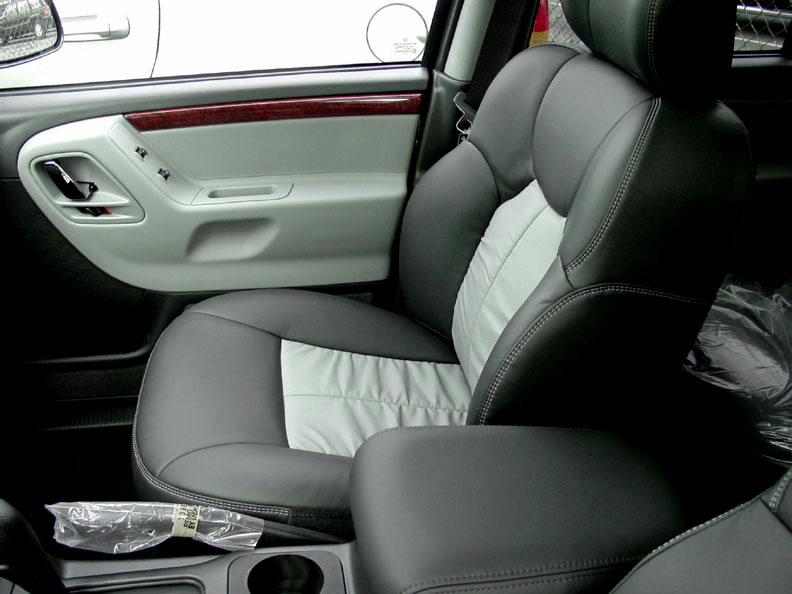

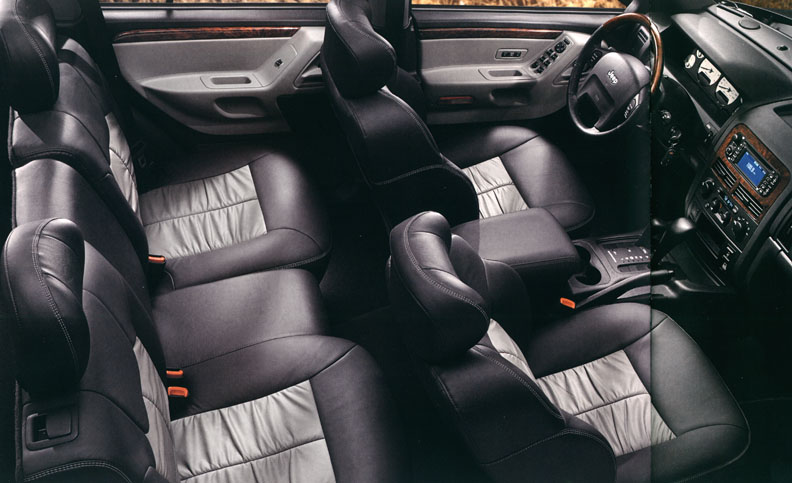

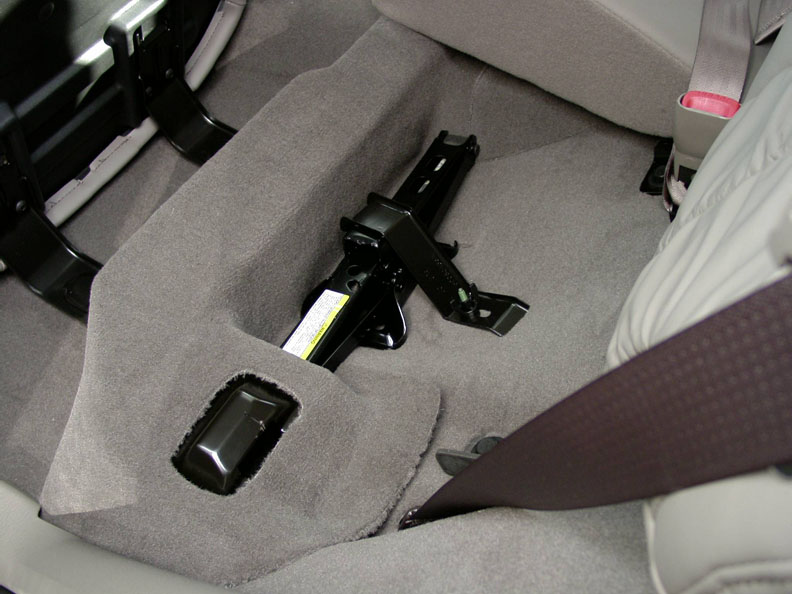

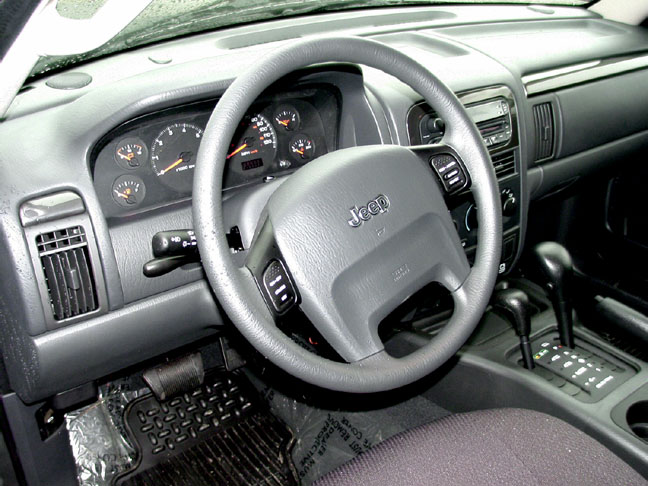

2004 Interiors
