SERVICE BULLETINS ARE NOT A WARRANTY ITEM FOR VEHICLES OUT OF WARRANTY. “Preventive” service repairs will generally not be performed under warranty during the normal warranty period if a vehicle is not exhibiting the particular symptom or problem. TSB’s are not recalls. If you ask your dealer to perform the modification outside of the warranty period, expect to pay for the labor and parts.
The following Service Bulletin data is provided strictly for informational purposes only, to assist owners to find out if a particular problem they may be experiencing with their vehicles has been addressed with a factory service bulletin. Complete detailed information is not given for every bulletin. If a listed problem or symptom is present or suspected, owners should consult their authorized Jeep service department for the latest up to date bulletins and proper procedures. Repairs, adjustments or modifications described in these TSB’s should be done by qualified service personnel only, especially when relating to safety and drivability issues. For a detailed explanation of TSB’s, see this article from Edmunds.com: You, Your Vehicle and the Technical Service Bulletin.
| Service Bulletin numbering
|
|||
| 18 | 009 | 04 | A |
| Category (1st 2 digits) |
Bulletin sequence (Middle 2 or 3 digits) |
Year issued (Last 2 digits) |
Revision (Letter at end) |
Bulletin numbering: The first two digits of all TSB numbers represent the category group. The middle two (or three) digits denote the category issue sequence, while the last two represent the calendar year in which the TSB was issued. In the example above, bulletin # “18-009-04” is in the “Performance” category, and was the 9th Chrysler TSB released for this category in calendar year 04. A letter at the end, as in “18-009-04A”, designates a revision and or update, and supersedes the prior bulletin.

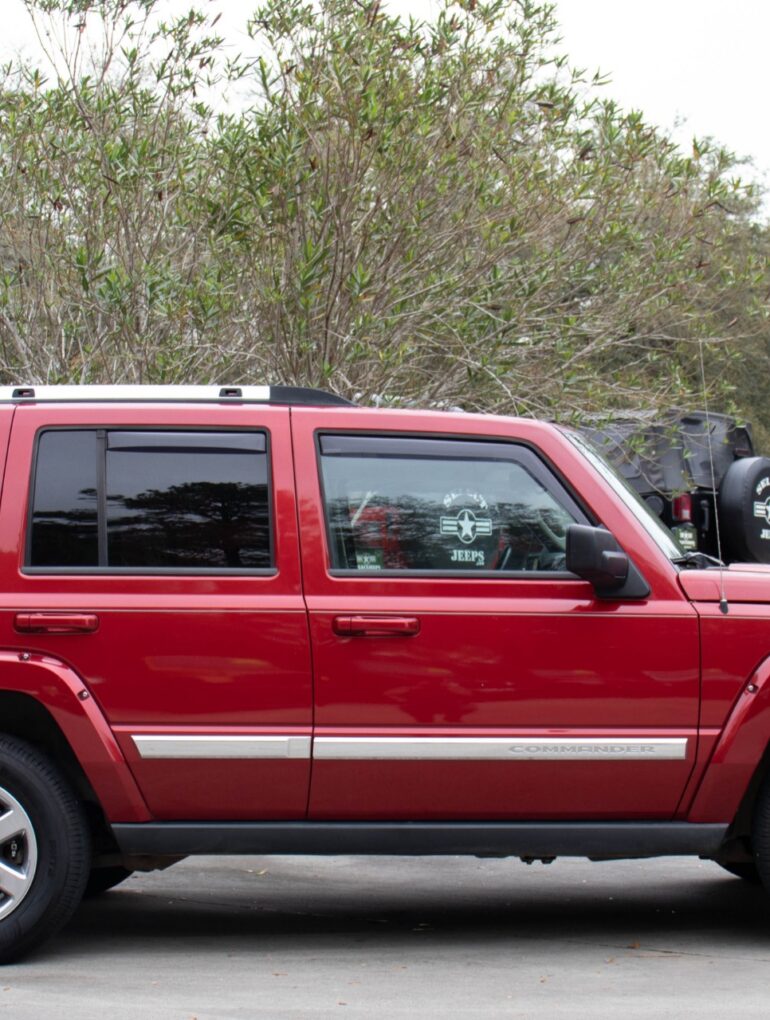

Jeep Commander Technical Service Bulletins
2006-2010 model years
North American and export models
| About the table – The table below lists every TSB issued for all 2006-up Jeep Commander models (XK and XH series). Bulletins are listed in Group order, and within the Group by issue date from oldest to newest.Applicable model year: – The model year for which a given TSB applies is listed with an “X” in the table. Note that some repairs or technical information may be applicable to only a small number of vehicles and/or vehicles or parts built before or after certain dates. This information is listed on the actual bulletins. In rare cases bulletins may describes issues or conditions that may be present on model years not specified. |
| 00 Newest BulletinsNOTE – Includes all bulletins released through: October 12, 2010 | |||||||
| TSB # | Date | Title | 06 | 07 | 08 | 09 | 10 |
| 18-015-10c | 08/12/10 | FLASH: MIL ILLUMINATION FOR P2181 – COOLING SYSTEM PERFORMANCE (4.7L, 5.7L) | X | X | |||
| 08-018-10 | 07/09/10 | LEFT TURN SIGNAL ON TRAILER MAY BE INOPERATIVE | X | ||||
| 08-014-10 | 06/29/10 | RADIO LOCKS UP (REN, REZ) | X | X | X | ||
| 08-010-10 | 05/14/10 | FLASH: WIN MODULE FOR INTERMITTENT RKE FUNCTIONS | X | ||||
| 18-001-10a | 04/28/10 | FLASH: MIL ILLUMINATION FOR P050D – COLD START ROUGH IDLE | X | ||||
| 18-007-10 | 03/20/10 | FLASH: MIL ILLUMINATION P0730 AND/OR P0731 AND FUEL ECONOMY IMPROVEMENT (3.7L) | X | ||||
| 18-006-10 | 03/10/10 | Flash: MDS DRIVEABILITY IMPROVEMENTS (5.7L) (supersedes 18-031-09 dated 10/30/09 |
X | ||||
| 08-004-10 | 03/02/10 | RADIO VIDEO DISABLE UPDATE | X | X | X | ||
| 07-001-10 | 02/04/10 | BELT CHIRP WHEN STEERING WHEEL IS AT FULL LOCK WITH ENGINE RPM AT IDLE | X | ||||
| 26-001-09 | 09/24/09 | FLUID FLUSHING REQUIREMENTS (supersedes 26-003-07 dated 03/30/07) |
X | X | X | X | X |
| 08-015-09 | 09/04/09 | FLASH: CCN FOR DUTCH LANGUAGE (XH/XK export models only) |
X | X | |||
| 18-025-09 | 09/02/09 | FLASH: MIL ILLUMINATION P2610 – PCM INTERNAL ENGINE OFF TIMER PERFORMANCE | X | ||||
| 14-001-09a | 09/01/09 | HARD TO FILL WITH FUEL OR FUEL NOZZLE SHUTS OFF REPEATEDLY | X | X | X | X | |
| 18-020-09 | 07/09/09 | FLASH: MIL ILLUMINATION AND/OR MDS DRIVEABILITY IMPROVEMENTS | X | ||||
| 18-014-09 | 05/09/09 | FLASH: ESP SYSTEM MAY PREMATURELY ACTIVATE MOMENTARILY WHEN NEGOTIATING A CURVE OR MIL ILLUMINATION DUE TO DIAGNOSTIC TROUBLE CODE P0340, P0344 OR P0116 (supersedes 18-027-07 dated 04/21/07) |
X | ||||
| 24-002-09 | 05/06/09 | FLASH – TOO LARGE OF A TEMPERATURE INCREASE WHEN THE TEMP KNOB IS MOVED ONE OR TWO DETENTS FROM FULL COLD POSITION (supersedes 24-002-08a dated 11/26/08) |
X | X | |||
| 18-004-09a | 04/01/09 | FLASH: HESITATION FEEL BETWEEN 38 TO 45 MPH (supersedes 18-004-09 dated 02/06/09) |
X | X | |||
| 08-006-09 | 03/19/09 | FLASH: RES RADIO CLOCK LOCKUP AND SDARS RESET | X | ||||
| 09-001-09 | 02/27/09 | 3.0L DIESEL ALTERNATOR INOPERATIVE | X | X | X | X | |
| 08-003-09 | 02/13/09 | MYGIG REN OR REZ RADIO INOPERATIVE AFTER BATTERY DISCONNECT | X | X | |||
| 18-004-09 | 02/06/09 | FLASH: HESITATION FEEL BETWEEN 38 TO 45 MPH (superseded by 18-004-09a dated 4/01/09) |
X | ||||
| 18-041-08 | 12/16/08 | FLASH: SPARK KNOCK IMPROVEMENTS AND NOISE VIBRATION HARSHNESS (NVH) IMPROVEMENTS | X | ||||
| 08-036-08 | 11/27/08 | FLASH: AUDIO SYSTEM MUTES ON START-UP, AMPLIFIER SETTINGS AFTER EXITING HANDS FREE MODE AND NAVIGATIONAL VOLUME CORRECTIONS | X | ||||
| 24-009-08 | 11/26/08 | WARM AIR FROM INSTRUMENT PANEL OUTLETS WHEN COLD AIR IS SELECTED | X | ||||
| 08-024-08a | 10/14/08 | MYGIG RADIO HARD DRIVE RECOVERY/UPDATE DISC (supersedes 08-024-08 dated 8/15/08) |
X | ||||
| 08-028-08 | 09/18/08 | VOICE RECOGNITION SCREEN LOCK-UP ON REN OR REZ RADIO EQUIPPED WITH HANDS-FREE COMMUNICATIONS | X | ||||
| 21-021-08 | 09/17/08 | AUTOMATIC TRANSMISSION DIAGNOSTIC TEAR DOWN PROCEDURE | X | X | X | X | |
| 02 Suspension | |||||||
| TSB # | Date | Title | 06 | 07 | 08 | 09 | 10 |
| 02-005-05 | 12/14/05 | SQUEAK-LIKE SOUND FROM REAR SPRING ISOLATOR (superseded by 02-003-07 dated 8/21/07) |
X | ||||
| 02-003-07 | 08/21/07 | SQUEAK LIKE SOUND FROM REAR SPRING ISOLATOR (supersedes 02-005-05 dated 12/14/05) |
X | X | X | ||
| 03 – Driveline/Axle | |||||||
| TSB # | Date | Title | 06 | 07 | 08 | 09 | 10 |
| 03-004-07 | 12/19/07 | RINGING SOUND COMING FROM PROPELLER SHAFT WHEN TRANSMISSION IS SHIFTED FROM DRIVE TO REVERSE OR REVERSE TO DRIVE | X | X | |||
| 05 – Brakes(No bulletins issued to date) | |||||||
| TSB # | Date | Title | 06 | 07 | 08 | 09 | 10 |
| 07 – Cooling | |||||||
| TSB # | Date | Title | 06 | 07 | 08 | 09 | 10 |
| 07-002-06 | 02/21/06 | HYDRAULIC RADIATOR COOLING FAN SYSTEM DIAGNOSTIC CHECK CHART AID (supersedes 07-002-5 dated 6-24-05) |
X | ||||
| 07-001-10 | 02/04/10 | BELT CHIRP WHEN STEERING WHEEL IS AT FULL LOCK WITH ENGINE RPM AT IDLE | X | ||||
| 08 – Electrical | |||||||
| TSB # | Date | Title | 06 | 07 | 08 | 09 | 10 |
| 08-042-05 | 08/05/05 | SATELLITE SIGNAL INTERFERENCE AT ANTENNA DUE TO REAR CROSS BAR POSITION | X | ||||
| 08-049-05 | 09/01/05 | FLASH: UCONNECT HANDS FREE MODULE FAILS TO RESPOND DUE TO MODULE “LOCK UP” | X | ||||
| 08-054-05 | 10/11/05 | AMBIENT TEMPERATURE READS HIGHER THAN ACTUAL | X | ||||
| 08-060-05 | 11/16/05 | NO ENGINE CRANK – LOSS OF COMMUNICATIONS WITH FRONT CONTROL MODULE | X | ||||
| 08-005-06 | 01/31/06 | OUTSIDE AMBIENT TEMPERATURE READING INACCURATE AS DISPLAYED BY INSTRUMENT CLUSTER (superseded by 08-005-06b dated 8/24/06) | X | ||||
| 08-011-06 | 03/02/06 | PARK ASSIST SYSTEM – WARNING CHIME FOR FRONT OBSTACLE DETECTION ALERTS TOO EARLY | X | ||||
| 08-014-06 | 03/16/06 | FLASH: UCONNECT HANDS FREE MODULE FAILS TO RESPOND DUE TO MODULE LOCK UP | X | ||||
| 08-017-06 | 04/26/06 | STARSCAN® VEHICLE SCAN REPORT AVAILABILITY | X | X | |||
| 08-018-06 | 05/02/06 | NO RADIO AUDIO OR DISPLAY FOLLOWING ENGINE CRANK | X | ||||
| 08-024-06 | 05/24/06 | FLASH: MEMORY SEAT/MEMORY STEERING COLUMN | X | ||||
| 08-005-06a | 06/03/06 | OUTSIDE AMBIENT TEMPERATURE READING INACCURATE AS DISPLAYED BY INSTRUMENT CLUSTER (superseded by 08-005-06b dated 8/24/06) |
X | ||||
| 08-030-06a | 07/12/06 | POWERTRAIN CONTROL MODULE INITIALIZATION | X | X | |||
| 08-031-06 | 07/13/06 | REAR VIEW CAMERA APPEARS INOPERATIVE, INTERMITTENT OR IMAGE IS DISTORTED | X | ||||
| 08-036-06 | 08/24/06 | FLASH: WRONG DRIVER SEAT POSITION MAY OCCUR AFTER A REMOTE START EVENT | X | ||||
| 08-005-06b | 08/24/06 | OUTSIDE AMBIENT TEMPERATURE READING INACCURATE AS DISPLAYED BY INSTRUMENT CLUSTER (supersedes 08-005-06 and 08-005-05a) | X | ||||
| 08-046-06 | 10/25/06 | CELL PHONE INDUCED BUZZ OR CLICKING-LIKE SOUND IN RADIO SPEAKERS | X | X | |||
| 08-001-07 | 01/03/07 | PASSENGER AIR BAG DEACTIVATION (supersedes 08-032-05 dated 12/02/05; superseded by 08-001-07b dated 05/16/07) |
X | X | |||
| 08-001-07a | 02/07/07 | PASSENGER AIR BAG DEACTIVATION (supersedes 08-001-01 dated 01/03/07; superseded by 08-001-07b dated 05/16/07)) |
X | X | |||
| 08-008-07 | 03/08/07 | FLASH: WIRELESS CONTROL MODULE (WCM) (superseded by 08-008-07a dated 12/14/07) |
X | ||||
| 08-001-07b | 05/16/07 | PASSENGER AIR BAG DEACTIVATION (supersedes 08-001-07a dated 02/07/07) |
X | X | |||
| 08-015-07 | 06/06/07 | FLASH: SUNROOF MODULE, EXCESSIVE IOD, POP IN RADIO, DOME LAMP FLICKERS | X | X | |||
| 08-017-07 | 06/09/07 | FLASH: CABIN COMPARTMENT NODE – INSTRUMENT CLUSTER AMBIENT TEMPERATURE DISPLAY ACCURACY (superseded by 08-017-07b dated 08/29/07) |
X | ||||
| 08-019-07 | 07/03/07 | FLASH: REMOTE START/ TIP START NOT FUNCTIONING AFTER A CLOCKSPRING OR STEERING CONTROL MODULE IS REPLACED | X | ||||
| 08-017-07a | 07/04/07 | FLASH: CABIN COMPARTMENT NODE – INSTRUMENT CLUSTER AMBIENT TEMPERATURE DISPLAY ACCURACY (supersedes 08-017-07 dated 06/09/07) (superseded by 08-017-07b dated 08/29/07)) |
X | ||||
| 08-021-07 | 08/22/07 | FRONT HEATED SEATS INOPERATIVE | X | ||||
| 08-017-07b | 08/29/07 | FLASH: CABIN COMPARTMENT NODE – INSTRUMENT CLUSTER AMBIENT TEMPERATURE DISPLAY ACCURACY (supersedes 08-017-07a dated 07/04/07) |
X | X | |||
| 08-022-07 | 09/15/07 | INTERMITTENT ILLUMINATION OF THE COURTESY LAMPS AND LIFTGATE AJAR INDICATOR WITH CHIME TONE | X | X | X | ||
| 08-024-07 | 10/10/07 | DISTORTED SOUND IN DOOR SPEAKER, REAR QUARTER SPEAKER OR REAR SHELF SPEAKER WITH THE RADIO ON (base sound systems only) |
X | X | |||
| 08-027-07 | 10/27/07 | FLASH: VES (OVER HEAD VIDEO SCREEN) IS NOT POWERING ON | X | ||||
| 08-025-07a | 12/07/07 | DVD SOFTWARE UPDATE MYGIG RADIO FOR MANY RADIO IMPROVEMENTS | X | ||||
| 08-008-07a | 12/14/07 | FLASH: WIRELESS CONTROL MODULE (WCM) FOR “SERVICE TIRE PRESSURE MONITOR SYSTEM” DISPLAYED IN THE EVIC (supersedes 08-008-07 dated 03/08/07) |
X | ||||
| 08-031-07 | 12/21/07 | FLASH: AMPLIFIER FOR AUDIO SYSTEM MUTES AFTER RAPID RADIO MODE CHANGES | X | ||||
| 08-032-07 | 12/21/07 | FLASH: RADIO – TEMPERATURE DISPLAY IN CLUSTER REVERT TO U.S. UNITS INTERMITTENTLY | X | ||||
| 08-003-08 | 02/01/08 | HARD START/NO START DUE TO WEAK BATTERY (MyGig radio) | X | ||||
| 08-008-08 | 03/06/08 | FLASH: RADIO – SOUND MUTES INTERMITTENTLY WHEN RADIO IS IN SAT (SIRIUS) MODE (REQ radios) | X | ||||
| 08-010-08 | 03/15/08 | SIRIUS BACKSEAT TV DIAGNOSTIC PROCEDURES | X | ||||
| 08-019-08 | 05/06/08 | FLASH: RADIO – CD LOSES LAST PLAYED TRACK AFTER A IGNITION SWITCH CYCLE | X | ||||
| 08-013-08a | 07/11/08 | FLASH: OIL CHANGE MONITOR ALERTS PREMATURELY (supersedes 08-013-08 dated 04/03/08) |
X | ||||
| 08-024-08 | 08/15/08 | MYGIG RADIO HARD DRIVE RECOVERY/UPDATE DISC (superseded by 08-024-08a dated 10/14/08) |
X | ||||
| 08-027-08 | 08/29/08 | UCONNECT AND VOICE RECOGNITION INOPERATIVE | X | ||||
| 08-036-08 | 11/27/08 | FLASH: AUDIO SYSTEM MUTES ON START-UP, AMPLIFIER SETTINGS AFTER EXITING HANDS FREE MODE AND NAVIGATIONAL VOLUME CORRECTIONS | X | ||||
| 08-003-09 | 02/13/09 | MYGIG REN OR REZ RADIO INOPERATIVE AFTER BATTERY DISCONNECT | X | X | |||
| 08-006-09 | 03/19/09 | FLASH: RES RADIO CLOCK LOCKUP AND SDARS RESET | X | ||||
| 08-028-08 | 09/18/08 | VOICE RECOGNITION SCREEN LOCK-UP ON REN OR REZ RADIO EQUIPPED WITH HANDS-FREE COMMUNICATIONS | X | ||||
| 08-024-08a | 10/14/08 | MYGIG RADIO HARD DRIVE RECOVERY/UPDATE DISC (supersedes 08-024-08 dated 8/15/08) |
X | ||||
| 08-015-09 | 09/04/09 | FLASH: CCN FOR DUTCH LANGUAGE (XH/XK export models only) |
X | X | |||
| 08-004-10 | 03/02/10 | RADIO VIDEO DISABLE UPDATE | X | X | X | ||
| 08-010-10 | 05/14/10 | FLASH: WIN MODULE FOR INTERMITTENT RKE FUNCTIONS | X | ||||
| 08-018-10 | 07/09/10 | LEFT TURN SIGNAL ON TRAILER MAY BE INOPERATIVE | X | ||||
| 09 – Engine | |||||||
| TSB # | Date | Title | 06 | 07 | 08 | 09 | 10 |
| 09-005-06 | 04/27/06 | SWIRL CHAMBER LINKAGE CLIP MAY BIND CAUSING DTC P1270 – INTAKE MANIFOLD RUNNER PERF (XH export models only) | X | ||||
| 09-009-06 | 09/09/06 | INTAKE-TO-THROTTLE BODY JOINT MAY CAUSE A WHISTLE-LIKE SOUND ON 3.7L ENGINES (superseded by 09-001-07 dated 03/14/07) | X | ||||
| 09-001-07 | 03/14/07 | INTAKE-TO-THROTTLE BODY JOINT MAY CAUSE A WHISTLE-LIKE SOUND ON 3.7L ENGINES (supersedes 09-009-06 dated 09/09/06) | X | ||||
| 09-002-07 | 09/13/07 | SWIRL CHAMBER LINKAGE CLIP MAY BIND CAUSING DTC P1270 – INTAKE MANIFOLD RUNNER PERF (3.0 turbo diesel export models only) |
X | ||||
| 09-004-07 | 09/25/07 | ENGINE CRANKS BUT WILL NOT START (3.0L DIESEL) | X | X | X | ||
| 09-005-07 | 10/02/07 | 3.0L DIESEL OIL FILTER CAP SERVICE (3.0L DIESEL) | X | X | X | ||
| 09-006-07 | 10/23/07 | OIL FILTER CHANGE FOR SOME 2008 VEHICLES | X | ||||
| 09-001-08 | 04/08/08 | 3.0L DIESEL ENGINE TICK, RATTLE OR KNOCK SOUND (WH export models only) |
X | X | |||
| 09-001-09 | 02/27/09 | 3.0L DIESEL ALTERNATOR INOPERATIVE | X | X | X | X | |
| 11 – Exhaust | |||||||
| TSB # | Date | Title | 06 | 07 | 08 | 09 | 10 |
| 11-001-07 | 02/07/07 | TURBOCHARGER, CHARGE AIR COOLER, AND EXHAUST GAS RECIRCULATION SYSTEMS DIAGNOSIS ON OM642 ENGINES (XH export models only) | X | ||||
| 14 – Fuel | |||||||
| TSB # | Date | Title | 06 | 07 | 08 | 09 | 10 |
| 14-001-06 | 01/21/06 | LOOSE FUEL CAP MESSAGE OR MIL ILLUMINATION FOR TROUBLE CODE P0457 | X | ||||
| 14-001-09a | 09/01/09 | HARD TO FILL WITH FUEL OR FUEL NOZZLE SHUTS OFF REPEATEDLY | X | X | X | X | |
| 16 – Propeller Shaft & U-Joint | |||||||
| TSB # | Date | Title | 06 | 07 | 08 | 09 | 10 |
| 18 – Performance | |||||||
| TSB # | Date | Title | 06 | 07 | 08 | 09 | 10 |
| 18-035-05 | 09/29/05 | FLASH: 5.7L MIL ILLUMINATION AT START-UP DUE TO DTC P2112 – ETC UNABLE TO OPEN | X | ||||
| 18-018-06 | 05/13/06 | FLASH: MIL ILLUMINATION AT START-UP DUE TO DTC P2112 OR P1521 | X | ||||
| 18-001-06a | 07/12/06 | STARSCAN®/STARMOBILE™ ABORT RECOVERY PROCEDURES | X | X | |||
| 18-027-07 | 04/17/07 | FLASH: MIL ILLUMINATION DUE TO EGR POSITION SENSOR DTC – P0404, P0405, OR P0406 | X | X | |||
| 18-028-07 | 04/21/07 | FLASH: 3.7L – MOMENTARY PREMATURE ACTIVATION OF THE TRACTION CONTROL SYSTEM (superseded by 18-014-09 dated 5/09/09) |
X | ||||
| 18-040-07 | 07/17/07 | FLASH: MIL ILLUMINATION DUE TO DTC P1128, P1129 WHEN VEHICLE IS OPERATED WITH A 38% TO 40% ETHANOL FUEL BLEND | X | ||||
| 18-044-07 | 10/12/07 | FLASH: MIL ILLUMINATION DUE TO DIAGNOSTIC TROUBLE CODE P0524 – ENGINE OIL PRESSURE TOO LOW (5.7L) (superseded by 18-003-08 dated 01/19/08) |
X | ||||
| 18-047-07 | 11/13/07 | MIL ILLUMINATION DUE TO DIAGNOSTIC TROUBLE CODE P0481 – COOLING FAN 2 CONTROL CIRCUIT | X | ||||
| 18-049-07 | 12/13/07 | FLASH: ESP SYSTEM MAY PREMATURELY ACTIVATE MOMENTARILY WHEN NEGOTIATING A CURVE OR MIL ILLUMINATION DUE TO DIAGNOSTIC TROUBLE CODE P0340, P0344 OR P0116 | X | ||||
| 18-003-08 | 01/19/08 | FLASH: MIL ILLUMINATION DUE TO DIAGNOSTIC TROUBLE CODE P0524 – ENGINE OIL PRESSURE TOO LOW (supersedes 18-044-07 dated 10/12/07) |
X | X | |||
| 18-004-08 | 01/19/08 | FLASH: MILL ILLUMINATION P0430 – CATALYST SYSTEM EFFICIENCY BELOW THRESHOLD (BANK 2) (superseded by 18-004-08a dated 03/05/08) |
X | ||||
| 18-005-08 | 06/13/08 | FLASH: TURN OFF OIL CHANGE INDICATOR MESSAGE INTERNATIONAL VEHICLES ONLY (superseded by 18-005-08a dated 06/13/08) (WH export models only) |
X | ||||
| 18-006-08 | 01/31/08 | FLASH: 3.0L DIESEL – NO START COLD / HARD START WARM (superseded by 18-006-08a dated 4/08/08) (XH export models only) |
X | X | |||
| 18-008-08 | 02/21/08 | FLASH: FALSE MIL ILLUMINATION DUE TO DIAGNOSTIC TROUBLE CODE P1521 – INCORRECT ENGINE OIL TYPE (superseded by 18-008-08a dated 3/15/08) |
X | ||||
| 18-004-08a | 03/05/08 | FLASH: Mill Illumination P0430 – Catalyst System Efficiency Below Threshold (Bank 2) or P0420 – Catalyst System Efficiency Below Threshold (Bank 1) (supersedes 18-004-08 dated 01/19/08) |
X | X | |||
| 18-008-08a | 03/15/08 | FLASH: DIAGNOSTIC TROUBLE CODE P1521 – INCORRECT ENGINE OIL TYPE SET (supersedes 18-008-08 dated 02/21/08) |
X | ||||
| 18-006-08a | 04/08/08 | FLASH: 3.0L DIESEL – NO START COLD / HARD START WARM (supersedes 18-006-08 dated 01/31/08) (WH export models only) |
X | X | |||
| 18-005-08b | 08/20/08 | FLASH: TURN OFF OIL CHANGE INDICATOR MESSAGE INTERNATIONAL VEHICLES ONLY (supersedes 18-005-08 dated 01/26/08) (XH export models only) |
X | ||||
| 18-041-08 | 12/16/08 | FLASH: SPARK KNOCK IMPROVEMENTS AND NOISE VIBRATION HARSHNESS (NVH) IMPROVEMENTS | X | ||||
| 18-004-09 | 02/06/09 | FLASH: HESITATION FEEL BETWEEN 38 TO 45 MPH (superseded by 18-004-09a dated 4/01/09) |
X | ||||
| 18-004-09a | 04/01/09 | FLASH: HESITATION FEEL BETWEEN 38 TO 45 MPH (supersedes 18-004-09 dated 02/06/09) |
X | X | |||
| 18-014-09 | 05/09/09 | FLASH: ESP SYSTEM MAY PREMATURELY ACTIVATE MOMENTARILY WHEN NEGOTIATING A CURVE OR MIL ILLUMINATION DUE TO DIAGNOSTIC TROUBLE CODE P0340, P0344 OR P0116 (supersedes 18-027-07 dated 04/21/07) |
X | ||||
| 18-014-09 | 05/09/09 | FLASH: ESP SYSTEM MAY PREMATURELY ACTIVATE MOMENTARILY WHEN NEGOTIATING A CURVE OR MIL ILLUMINATION DUE TO DIAGNOSTIC TROUBLE CODE P0340, P0344 OR P0116 (supersedes 18-027-07 dated 04/21/07) |
X | ||||
| 18-020-09 | 07/09/09 | FLASH: MIL ILLUMINATION AND/OR MDS DRIVEABILITY IMPROVEMENTS | X | ||||
| 18-025-09 | 09/02/09 | FLASH: MIL ILLUMINATION P2610 – PCM INTERNAL ENGINE OFF TIMER PERFORMANCE | X | ||||
| 18-007-10 | 03/20/10 | FLASH: MIL ILLUMINATION P0730 AND/OR P0731 AND FUEL ECONOMY IMPROVEMENT (3.7L) | X | ||||
| 18-006-10 | 03/10/10 | Flash: MDS DRIVEABILITY IMPROVEMENTS (5.7L) (supersedes 18-031-09 dated 10/30/09 |
X | ||||
| 18-001-10a | 04/28/10 | FLASH: MIL ILLUMINATION FOR P050D – COLD START ROUGH IDLE | X | ||||
| 18-015-10c | 08/12/10 | FLASH: MIL ILLUMINATION FOR P2181 – COOLING SYSTEM PERFORMANCE (4.7L, 5.7L) | X | X | |||
| 19 – Steering | |||||||
| TSB # | Date | Title | 06 | 07 | 08 | 09 | 10 |
| 19-008-05 | 10/19/05 | REVISED POWER STEERING SYSTEM BLEEDING PROCEDURES | X | ||||
| 19-009-05 | 11/05/05 | COLD TEMPERATURE INITIAL START-UP – POWER STEERING WHINE-LIKE SOUND | X | ||||
| RR-06-040 | 09/15/06 | STEERING COLUMN CONTROL MODULE FLASH (ESP AND BAS LAMP ILLUMINATION) | X | ||||
| 21 – Transmission | |||||||
| TSB # | Date | Title | 06 | 07 | 08 | 09 | 10 |
| 21-015-05 | 09/01/05 | 45RFE / 545RFE TRANS – DELAYED ENGAGEMENT DUE TO COOLER RETURN FILTER REPLACEMENT | X | ||||
| 21-016-05 | 09/01/05 | RFE TRANSMISSION – DELAYED ENGAGEMENT AFTER AN EXTENDED OFF PERIOD | X | ||||
| 21-007-06 | 04/07/06 | RFE TRANSMISSION FILTERS – DELAYED ENGAGEMENT AND RELATED TRANSMISSION DTC’S | X | ||||
| 21-008-06 | 04/08/06 | AUTOMATIC TRANSMISSION DIAGNOSTIC TEAR DOWN PROCEDURE (supersedes 21-018-05 dated 10/04/05) |
X | ||||
| 21-010-06 | 04/14/06 | AUTOMATIC TRANSMISSION FLUID USAGE ATF+4 (TYPE MS9602) (superseded by 21-014-07 dated 10/16/07) |
X | X | |||
| 21-014-06 | 05/18/06 | FLASH: ERRONEOUS FAULT WARNING – SERVICE 4WD SYSTEM ILLUMINATED (superseded by 21-014-06a dated 11/02/06) |
X | ||||
| 21-016-06 | 07/06/06 | SHIFTER BEZEL SERVICE – SHIFTER ASSEMBLY NOW HAS SERVICEABLE COMPONENTS (superseded by 21-016-06a dated 11/15/06) |
X | X | |||
| 21-019-06 | 10/13/06 | IDLE RPM FLARE DURING COLD VEHICLE OPERATION – REVISED TRANSMISSION OIL FILL LEVEL (XH export models only) | X | ||||
| 21-014-06a | 11/02/06 | FLASH: ERRONEOUS FAULT WARNING – SERVICE 4WD SYSTEM ILLUMINATED (supersedes 21-014-06 dated 05/19/06) |
X | ||||
| 21-012-07 | 07/17/07 | FLASH: MIL ILLUMINATION WITH DIAGNOSTIC TROUBLE CODE P0741- TORQUE CONVERTER CLUTCH CIRCUIT PERFORMANCE | X | ||||
| 21-014-07 | 10/16/07 | AUTOMATIC TRANSMISSION FLUID USAGE ATF+4 (TYPE MS9602) (supersedes 21-010-06 dated 04/14/06) |
X | X | X | ||
| 21-021-08 | 09/17/08 | AUTOMATIC TRANSMISSION DIAGNOSTIC TEAR DOWN PROCEDURE | X | X | X | X | |
| 22 – Wheels | |||||||
| TSB # | Date | Title | 06 | 07 | 08 | 09 | 10 |
| 22-002-05 | 12/07/05 | TIRE PRESSURE MONITOR – SYSTEM INFORMATION | X | ||||
| 22-002-06 | 07/02/06 | TIRE PRESSURE MONITOR DTC’S DUE TO THE IOD FUSE NOT BEING INSTALLED | X | X | |||
| 23 – Body | |||||||
| TSB # | Date | Title | 06 | 07 | 08 | 09 | 10 |
| 23-039-05 | 08/24/05 | LOWER DOOR HINGE – MAY CAUSE A CHIRP, SQUEAK, OR GROAN-LIKE SOUND | X | ||||
| 23-050-05 | 10/14/05 | RETAINER FOR DOOR SECONDARY SEAL – WATER LEAK DUE TO VOIDS IN BAKED-ON ADHESIVE | X | ||||
| 23-056-05 | 12/13/05 | SECOND ROW 40/20/40 FOLD & TUMBLE SEAT MECHANISM BINDING | X | ||||
| 23-003-06 | 01/19/06 | PAINT REPAIR – ETCHING (superseded by 23-046-07 dated 10/30/07) |
X | X | |||
| 23-004-06 | 01/21/06 | PASSENGER CABIN WATER LEAKAGE AND/OR WIND-LIKE SOUND | X | ||||
| 23-008-06 | 02/11/06 | FRONT DOOR GLASS – LOOSE, STICKS, BINDS, MOAN-LIKE SOUND, OR EXPRESS-UP REVERSAL (superseded by 23-001-08 dated 1/15/08) |
X | ||||
| 23-015-06 | 03/09/06 | WHITE COLOR WATER MARK-LIKE DISCOLORATION ON CLOTH SEAT SURFACES | X | ||||
| 23-022-06 | 05/26/06 | WHISTLE-LIKE SOUND DUE TO CABIN AIR PASSING THROUGH THE SUNROOF FRONT DRAIN TUBE | X | ||||
| 23-025-06 | 06/15/06 | HEADLINER STORAGE POCKET | X | X | |||
| RR-06-027 | 07/26/06 | WINDSHIELD HEADER BUZZ OR HUMMING SOUND | X | ||||
| RR-06-030 | 08/29/06 | COWL STUD SEALING PATCH | X | ||||
| 23-039-06 | 09/22/06 | PASSENGER SEAT MANUAL RECLINER INOPERATIVE | X | X | |||
| 23-040-06 | 09/26/06 | FLASH: REAR OF SUNROOF GLASS IS NOT FLUSH TO ROOF/SUNROOF WILL NOT CLOSE | X | ||||
| 23-041-06 | 09/27/06 | EXTERIOR LAMP – LENS FOGGING (superseded by 23-035-07 dated 8/08/07) |
X | X | |||
| 23-047-06 | 10/21/06 | CRACKED WINDSHIELD | X | X | |||
| 23-051-06 | 11/04/06 | RATCHETING SOUND DURING SUNROOF OPERATION (superseded by 23-004-08 dated 01/16/08) |
X | X | |||
| 23-004-07 | 01/26/07 | TRANSIT FILM REMOVAL | X | ||||
| 23-032-07 | 08/02/07 | FRONT DOOR WINDOW GLASS – LOOSE, STICKS, BINDS, OR EXPRESS-UP REVERSAL (superseded by 23-001-08a dated 2/26/08) |
X | X | |||
| 23-034-07 | 08/04/07 | SCRATCH MARKS OR PAINT REPAIR NEEDED AT LOWER CORNERS OF LIFTGATE HANDLE | X | X | |||
| 23-035-07 | 08/08/07 | EXTERIOR LAMP – LENS FOGGING (supersedes 23-041-06 dated 09/27/06) |
X | ||||
| 23-036-07 | 08/22/07 | LOW GLOSS INTERIOR TRIM (supersedes 23-022-05 dated 04/02/05) |
X | X | X | ||
| 23-039-07 | 09/12/07 | SECOND ROW 40/20/40 FOLD & TUMBLE SEAT MECHANISM BINDING | X | X | |||
| 23-046-07 | 08/29/07 | PAINT REPAIR – ETCHING (supersedes 23-003-06 dated 01/19/06) |
X | X | X | ||
| 23-001-08 | 01/15/08 | FRONT DOOR GLASS – EXPRESS-UP REVERSAL (superseded by 23-001-08a dated 02/26/08) |
X | X | X | ||
| 23-004-08 | 01/16/08 | RATCHETING SOUND DURING SUNROOF OPERATION (supersedes 23-51-06 dated 11/04/06) |
X | X | X | ||
| 23-001-08a | 02/26/08 | FRONT DOOR GLASS – EXPRESS-UP REVERSAL (supersedes 23-001-08 dated 01/15/08) |
X | X | X | ||
| 24 – Heating & AC | |||||||
| TSB # | Date | Title | 06 | 07 | 08 | 09 | 10 |
| 24-013-05 | 08/04/05 | A/C COOLING COIL ODOR (superseded by 24-006-06 dated 8/09/06) |
X | ||||
| 24-020-05 | 11/05/05 | MANUAL TEMPERATURE CONTROL – A/C BUTTON LED MAY ILLUMINATE INTERMITTENTLY | X | ||||
| 24-002-06 | 03/04/06 | HVAC AUTOMATIC TEMPERATURE CONTROL – COMFORT SETTING IMPROVEMENTS | X | ||||
| 24-003-06 | 05/13/06 | HVAC WHISTLE SOUND | X | ||||
| 24-004-06 | 05/17/06 | STEERING WHEEL AND/OR INSTRUMENT PANEL VIBRATION | X | ||||
| 24-006-06 | 08/09/06 | A/C COOLING COIL ODOR | X | X | |||
| 24-001-07 | 01/20/07 | HVAC FLOOR AIR DISTRIBUTION | X | ||||
| 24-002-07 | 04/14/07 | WARM AIR FROM INSTRUMENT PANEL OUTLETS WHEN COLD AIR IS SELECTED | X | ||||
| 24-007-07 | 11/20/07 | NOISY BLOWER MOTOR DUE TO DEBRIS INGESTION | X | X | X | ||
| 24-009-08 | 11/26/08 | WARM AIR FROM INSTRUMENT PANEL OUTLETS WHEN COLD AIR IS SELECTED | X | ||||
| 24-002-08 | 02/05/08 | TOO LARGE OF A TEMPERATURE INCREASE WHEN THE TEMP KNOB IS MOVED ONE OR TWO DETENTS FROM FULL COLD POSITION (superseded by 24-002-09 dated 5/06/09) |
X | X | |||
| 24-003-08 | 02/05/08 | WHISTLE/HUMMING SOUND FROM HVAC WITH BLOWER ON | X | X | |||
| 24-002-09 | 05/06/09 | FLASH – TOO LARGE OF A TEMPERATURE INCREASE WHEN THE TEMP KNOB IS MOVED ONE OR TWO DETENTS FROM FULL COLD POSITION (supersedes 24-002-08a dated 11/26/08) |
X | X | |||
| 25 – Emissions | |||||||
| TSB # | Date | Title | 06 | 07 | 08 | 09 | 10 |
| 25-003-07 | 11/14/07 | DTC P0456 – EVAPORATIVE SYSTEM SMALL LEAK DUE TO LOOSE CHARCOAL FROM CANISTER | X | ||||
| 26 – Miscellaneous | |||||||
| TSB # | Date | Title | 06 | 07 | 08 | 09 | 10 |
| 26-003-07 | 03/30/07 | FLUID FLUSHING REQUIREMENTS (superseded by 26-001-09 dated 09/24/09) |
X | X | |||
| 26-002-08 | 02/26/08 | ADD PARKING BRAKE ADJUSTMENT TO THE 30 MONTH, 30K MILES OR 50K KM SERVICE INTERVAL | X | X | X | ||
| 26-001-09 | 09/24/09 | FLUID FLUSHING REQUIREMENTS (supersedes 26-003-07 dated 03/30/07) |
X | X | X | X | X |
