Jeep WJ Grand Cherokee 1999-2004 Factory Wheel and Tire Guide

Welcome to the JeepSpecs.com in-depth page on WJ Generation Jeep Grand Cherokee factory wheel and tire Guide. We have organized as much information as we could find into a helpful article below. Is something incorrect or missing? Please get in touch with us and we’ll fix it!
WJ Wheels
All 16×7.0″ Wheels:    Backspacing = 6.0″     Offset = 50.8mm    Bolt pattern = 5×5 (5x127mm)

All 17×7.5″ Wheels:    Backspacing = 6.25″   Offset = 50.8mm    Bolt pattern = 5×5 (5x127mm)

Lugnuts: 1/2″ x 20      Torque: 90-120 ft. lbs.

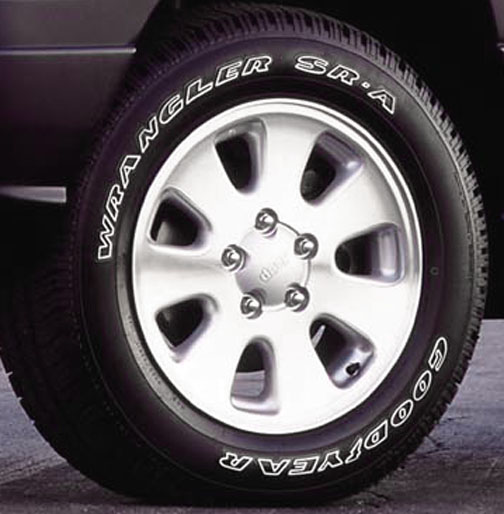

1. Timberline
1999-2002

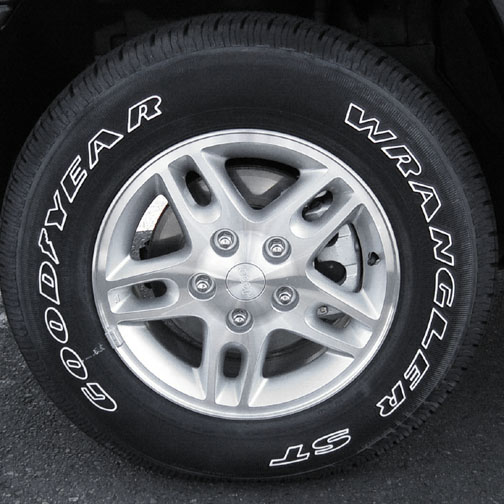

2. Silverblade #1
1999-2000, 2002-2004

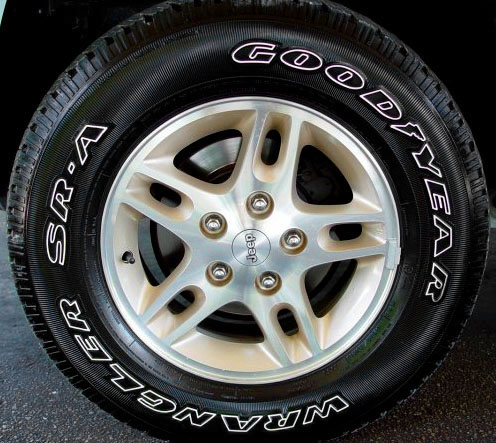

3. Silverblade #2
1999

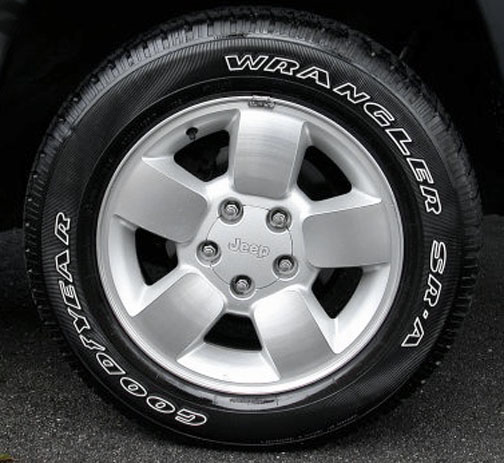

4. Silverblade #3
2001













5. Silverblade #4
2001
6. Rogue Chrome
2001-2004

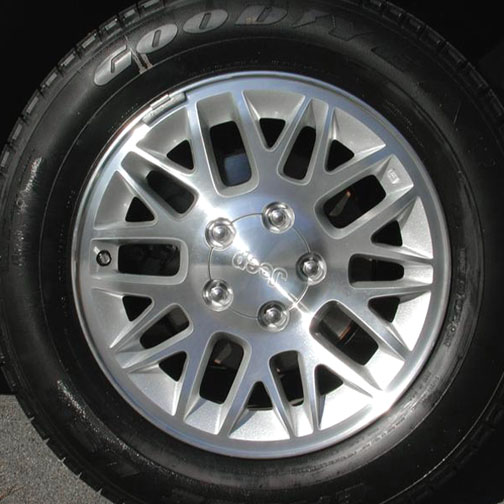

7. Avila
2002

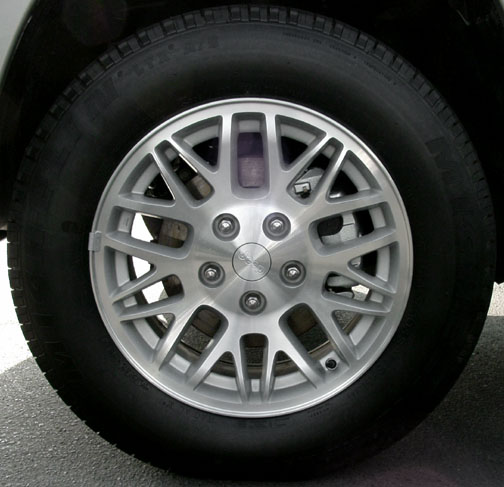

7b. Avila
2003-2004
8. Hammerhead
2002

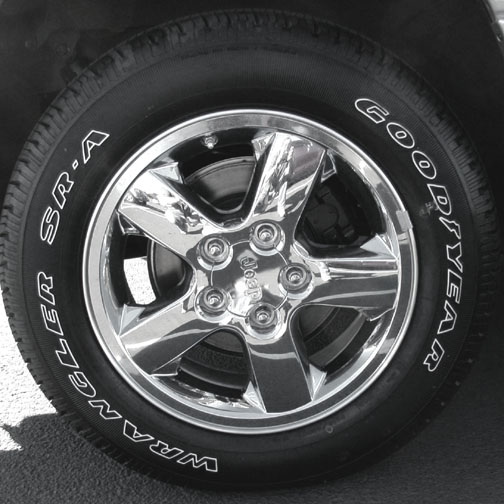

9. Rogue chrome clad
2003-2004
10. Rogue Silver
2003
11. Rogue Graphite
2004



Wheel Style Size Name Part # Model
Year
Model
Style 1 16 x 7 Timberline
(Cast aluminum with silver accents)
5EZ98TAEAB
(Sales code WDS)
wheel center cap #52059522AA

Center cap 1:
5CF97L3X
(Up to 8/16/01)

wheel center cap #52059522AA

Center cap 2:
52059522AA
(After 8/16/01)

1999

2000

2001

2002

Laredo (standard)

Laredo (standard)

Laredo (standard)

Laredo Sport (standard)

Style 216 x 7Silverblade #1
(Cast aluminum with Sparkle Silver painted accents, 5-spoke)5EZ99PAKAB
(1999-2000)5EZ99PAKAC
(2002-2003)5EZ99PAKAD
(2004)(Sales code WDR)



wheel center cap #52059522AA

Center cap 1:
5CF97L3X
(Up to 8/16/01)

wheel center cap #52059522AA

Center cap 2:
52059522AA
(After 8/16/01)

1999

2000

2002

2002

2003

2004

2004

Limited (standard)

Limited (standard)

Special Edition (standard)

Laredo (standard)

Laredo (standard)

Laredo (standard)

Special Edition (standard)

Style 316 x 7Silverblade #2
(Cast aluminum with Sparkle Camel painted accents, 5-spoke)5EZ99WK3AB
5EZ99WK3AD
(Sales code WDM)



wheel center cap #52059522AA

Center cap
5CF97L3X

1999Limited (standard)

Style 417 x 7.5Silverblade #3
(Cast aluminum with Sparkle Silver painted accents, 5-spoke)5HB10PAKAA
5HB10PAKAB
(Sales code WGF)

wheel center cap #5FA51PAK

Center cap:
5FA51PAKAC

2001Limited (standard)Style 517 x 7.5Silverblade #4
(Cast aluminum with Silver accents, 7-spoke)5HB03PAKAA
(Sales code WFK)

wheel center cap #5GJ46PAKAB

Center cap:
5GJ46PAKAB

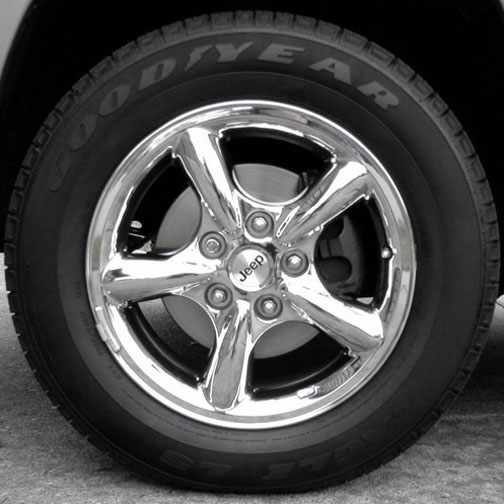

2001Laredo (standard with Special Appearance Group)Style 617 x 7.5Rogue Chrome
(may also be listed as Torque Chrome)52080260AA
(Sales code WGM)
Mopar: 82205898

wheel center cap #52080263AA

Center cap:
52080263AA

2001

2002

2003

2004

2004

Limited (optional)

Limited & Overland (optional)

(Optional Mopar accessory only)

Limited (optional)

Overland (standard)

Style 717 x 7.5Avila (large cap)
(Cast aluminum with Sparkle Silver accents, 10-spoke)5HE38PAKAA
(Sales code WGP)
(Up to 4/22/02)

wheel center cap #5HF45PAKaa

Center cap:
5HF45PAKAA

2002Limited (standard)Style 7b17 x 7.5Avila (small cap)
(Cast aluminum with Sparkle Silver accents, 10-spoke)5HE38TAEAB
(Sales code WGP)
(After 4/22/02)

wheel center cap #52059522AA

Center cap:
52059522AA

2003

2004

Limited (standard)

Limited (standard)

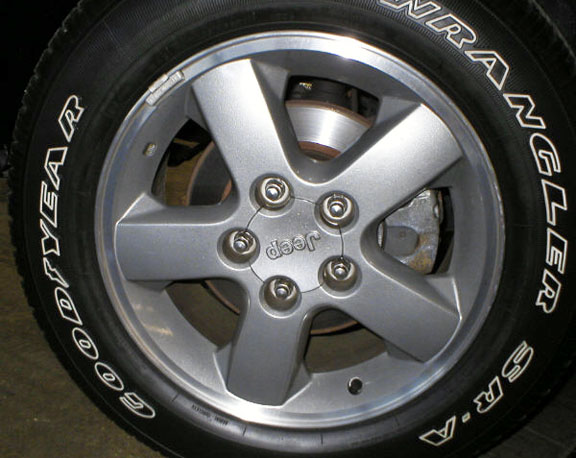

Style 817 x 7.5Hammerhead
(Cast aluminum with Medium Gray Metallic painted accents and machined rim)5HB10MA8AA
(Sales code WFZ)Center cap:
5HF52MA8AA2002Overland (standard)Style 917 x 7.5Rogue Chrome Clad
(Chrome Clad Cast Aluminum)52080333AA
(Sales code WGW)

wheel center cap #52080334AA

Center cap:
52080334AA

2003

2004

Limited / Overland (optional)

Limited / Overland (optional)

Style 1017 x 7.5Rogue Cast Aluminum
(Cast Aluminum with Satin Silver Finish)5HF55XZAAA
(sales code WF9)

wheel center cap #5HF52XAAA

Center cap:
5HF52XZAAA

2003Overland (standard)Style 1117 x 7.5Rogue Cast Aluminum
(Cast Aluminum with Graphite Finish)5HF55ZDRAA
(Sales code WFQ)

wheel center cap #5HF52XAAA

Center cap:
5HF52XZAAA

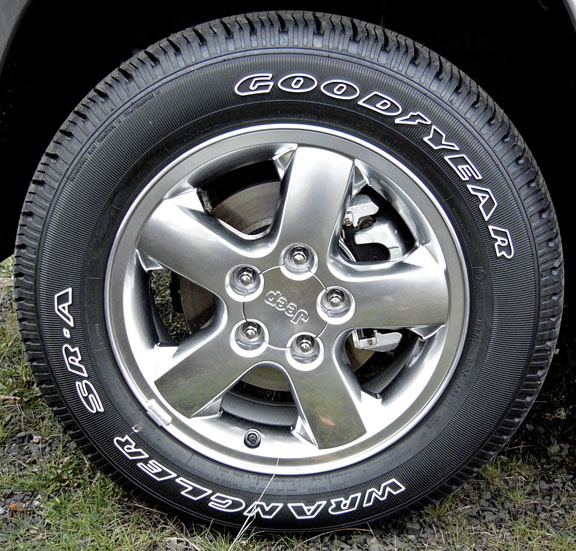

2004Freedom Edition (standard)Style 1217 x 7.5Rogue Cast Aluminum
(Chrome Clad Cast Aluminum with Platinum Finish)52080465AA
(Sales code WPV)

wheel center cap #52080466AA

Center cap:
52080466AA

2004

Columbia Edition (standard)Rocky Mountain (standard)





WJ wheels sorted by model year



1999 2000 2001 2002 2003/2004
Style 1

Laredo
Style 1

Laredo
Style 1

Laredo
Style 1

Laredo Sport

Style 2

Limited
Style 3

Limited
Style 5

Laredo
Style 2

Laredo / SE
Style 2

Laredo
Style 3

Limited
  Style 4

Limited
Style 7

Limited
Style 7b

Limited
    Style 6

Limited
Style 6

Limited / Overland
Style 6

Mopar parts only (2003)
Limited / Overland (2004)
      Style 8

Overland

        Style 9

Limited/Overland
        Style 10

Overland (2003)
        Style 11

Freedom Edition (2004)
        Style 12

Columbia Edition (2004)



1999-2004 factory tires



Tire Brand Style Sidewall Year Model
P225/75R16Diameter 29.3 in.
Sidewall 6.6 in.
Radius 14.6 in.
Circumference 92.0 in.
Rev. per mile 689
Goodyear Wrangler ST all-season BSW 1999

2000

2001

Laredo (standard “D”)

Laredo (standard)

Laredo (standard “E”)

P225/75R16Diameter 29.3 in.
Sidewall 6.6 in.
Radius 14.6 in.
Circumference 92.0 in.
Rev. per mile 689
Goodyear Wrangler ST all-season OWL 1999

2001

2002

2002

2002

2004

2004

Laredo (standard “E” & “F”)

Laredo (standard “F”, optional “E”)

Laredo (standard)

Laredo Sport (standard)

Laredo Special Edition (standard)

Laredo (standard)

Laredo Special Edition (standard)

P245/70R16Diameter 29.5 in.
Sidewall 6.8 in.
Radius 14.8 in.
Circumference 92.7 in.
Rev. per mile 684
Goodyear Eagle L/S all-terrain BSW 1999 Limited (standard)
P245/70R16Diameter 29.5 in.
Sidewall 6.8 in.
Radius 14.8 in.
Circumference 92.7 in.
Rev. per mile 684
Goodyear Eagle LS all-terrain OWL 2000 Limited (standard)
P245/70R16Diameter 29.5 in.
Sidewall 6.8 in.
Radius 14.8 in.
Circumference 92.7 in.
Rev. per mile 684
Goodyear Wrangler SR-A all-terrain OWL 1999

1999

2001

2002

2003

2004

2004

Laredo (optional)

Limited (optional)

Laredo (optional “E”, “F”, incl. with Up Country pkg.)

Laredo (optional, incl. with Up Country pkg.)

Laredo (optional, incl. with Up Country pkg.)

Laredo (optional, incl. with Up Country pkg.)

Laredo Special Edition (optional, incl. with Up Country pkg.)

P235/65R17Diameter 29.0 in.
Sidewall 6.0 in.
Radius 14.5 in.
Circumference 91.2 in.
Rev. per mile 692
Michelin LTX AS/P BSW 2001

2001

2002

2003

2004

Laredo (optional “S”)

Limited (standard)

Limited (standard)

Limited (standard)

Limited (standard)

P235/65R17Diameter 29.0 in.
Sidewall 6.0 in.
Radius 14.5 in.
Circumference 91.2 in.
Rev. per mile 692
Goodyear Wrangler SR-A all-terrain OWL 2001

2001

2002

2003

2004

2002

2003

2004

2004

2004

Laredo (optional)

Limited (optional, included with Up Country pkg.)

Limited (optional, included with Up Country pkg.)

Limited (optional, included with Up Country pkg.)

Limited (optional, included with Up Country pkg.)

Overland (standard)

Overland (standard)

Overland (standard)

Freedom Edition (standard)

Columbia Edition (standard)

P235/65R17Diameter 29.0 in.
Sidewall 6.0 in.
Radius 14.5 in.
Circumference 91.2 in.
Rev. per mile 692
Goodyear Eagle LS M+S BSW 2002 Limited (included w/HO engine)
P235/65R17Diameter 29.0 in.
Sidewall 6.0 in.
Radius 14.5 in.
Circumference 91.2 in.
Rev. per mile 692
Goodyear Goodyear Wrangler all-season performance BSW 2003 Limited (included w/HO engine)

Tires are specified in the form “P235/65R17”. The first number is the width of the tire (section), the second number is the aspect ratio (profile), and the third number is the wheel diameter (rim size). “P” is for “Passenger”, “R” for “Radial”.

Tire Calculating Form – You can compute tire size specifications through a handy on-line form. It can tell you specific information about your current tires and tell you the difference between that and other tire specifications. This can help you determine approximately how incorrect your speedometer and odometer will be if you should change tires and rims. This service calculates the actual size of a tire given its size specification. Any number of tire sizes may be specified in the list. For each tire specification, the percentage difference from the first size specification is shown. This is useful for determining the difference in speedometer and odometer reading or gearing.
